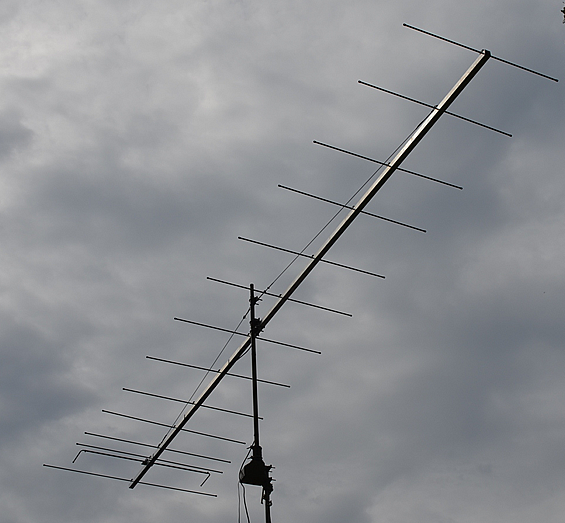

DISCONTINUED INNOV 14 element 88-108MHz OP-DES Yagi
Super Wide Band Broadcast (88-108MHz) OP-DES Yagi
- SKU
- 41-086
£289.96
Description / DISCONTINUED INNOV 14 element 88-108MHz OP-DES Yagi
Super Wide Band Broadcast (88-108MHz) OP-DES Yagi
If you are looking for the best of the best from both a performance and mechanical construction perspective then look no further, you have come to the right place!
With the antenna OP-DES Yagi for broadcast applications, even weak (DX) stations can be received with ease, no matter where within the 20MHz spread.
It has all parasitic elements made from 3/8inch aluminium thick wall tube. The parasitic elements are 3/8inch while the drive section is 1/2inch tapering to 3/8inch. RF neutral insulators which in-turn are held to the boom via Marine grade stainless steel fixings and fittings. The boom is 1.25inch square (31.75mm).
Specification
- Typical Gain:11.30dBi
- Typical F/B: 26dB
- Gain at 10m (33') above ground: 17.62dBi
- Power Rating: 3kw
- Feed Impedance: 75Ω or 50Ω
- Boom Length: 5.6m - 18' 5'
- Weight: 4.82Kg
- Turning Radius: 3.0m
- Wind Loading: 0.5 Square Metres
- Wind Survival: 206MPH
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109265319 |
| Manufacturer | InnovAntennas |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
