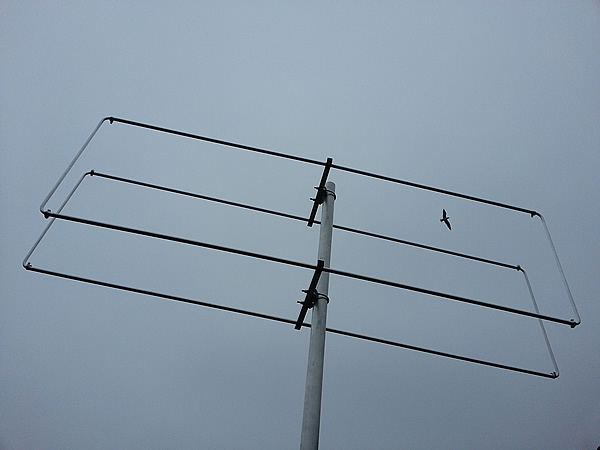

2 element LFA-Q (Super-rigid Quad-style) Super-Light Yagi for 69.9-70.5MHz

The LFA-Q Packs a bigger punch than a traditional Yagi with MUCH MORE GAIN per metre of boom If it is gain you want from a small boom, this is the antenna for you!

Improved Performance

A Quad-style antenna with full wave length loop elements which provide a number of benefits. First, if the elements are of reasonable thickness (which they are, they are not wire!) then good bandwidth coverage can be achieved. Next, up to around 7 elements (1.5wl) much better gain per metre of boom can be achieved than would otherwise be possible from a traditional Yagi covering the same bandwidth. Finally, with the dual-boom structure and 1/2'' diameter elements, the LFA-Q is extremely rigid and can stand up to some serious weather conditions./p>

Multiband, Performance-Busting Design

Despite its rigidity, the LFA-Q is extremely light weight and this means even in strong winds, snow and ice the LFA-Q will hold its own.

The antenna is made with a 1/2inch (12.7mm) and 3/8 inch (9.525mm) diameter tube for the LFA-Q and the boom sections are 3/4'' 19mm diameter. It is made to perform and with Marine Grade Stainless Steel fixings..

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of .01mm) to measure the elements during production to ensure they are within 0.2mm of what they should be.

Technical Specification:

• Gain: 6.77dBi @ 70.2MHz
• F/B: 16.7dB @ 70.2MHz
• Peak Gain: 6.88dBi
• Gain 10m above ground: 12.47dBi
• Peak F/B: 16.95dB
• Power Rating: 5kw
• SWR: Below 1.4.1 from 69.9MHz to 70.5MHz
• Boom Length: 29cms
• Loop Height: 50cms
• Weight: 0.7kg/1.2lbs
• Safe Wind Speed: 210Kph/130Mph
• Turning Radius: 1.55m/5ft
• Vertical Stacking: 2.2m
