Moxon Rectangle (Yagi)

>Supplied with instructions to tune for 27 or 28MHz coverage

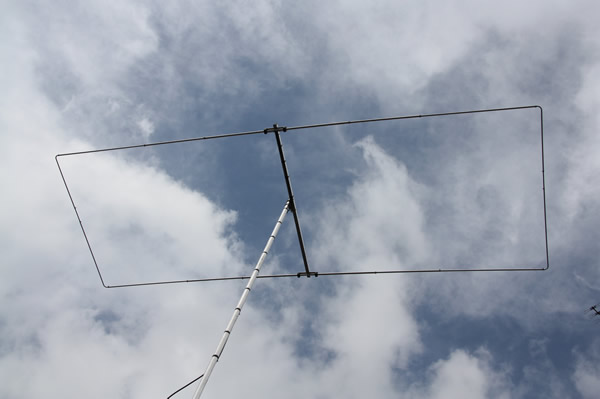

The Moxon Rectangle is a very popular limited space Yagi due to its very compact size.

It comprises of 2 elements, a driven element and a reflector element. The tips of each element are bent towards the other with the gap being filled by an insulator to help support the ends of both elements.

The original design and applied modern computer optimisation techniques tailor performance to suit specific bands (these are not simply scaled from one band to another) which results in exceptional, band-specific performance.

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of 1mm) to measure the elements during production.

Specification

• Gain: 6.13dBi Typical
• F/B: 29.91dB @ 27.555MHz
• Peak Gain: 6.15dBi
• Gain 9m above ground: 11.13dBi
• Peak F/B: 30dB
• Power Rating: 7kw
• SWR: Below 1.6.1 from 27MHz to 28MHz or 28-29MHz
• Boom Length: 145cms
• Weight: 5 Kilos
• Antenna Width: 4.04cms
• Turning Radius: 2.177cms
• Vertical Stacking: 3.5m apart
• Safe Wind Speed: 100 MPH+
