2m 144-1480MHz Current Balun 1.5kw

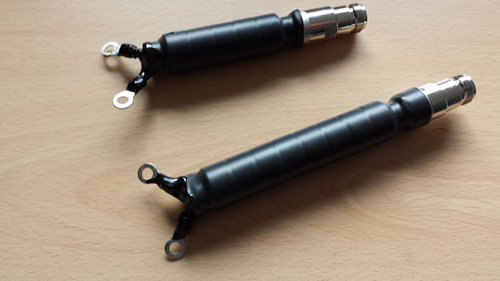

A Ferrite Core Balun fitted with N-type Female – IB2M

Improved Performance

If you do not want to wind a choke yourself or have an issue with the soldering iron or you just want a much cleaner Balun install then we can help. Ferrite core baluns have a much wider bandwidth than the choke so are far more suitable to wide band or multi-band antennas (such as log periodic Arrays).

The Ferrite core baluns are fitted with terminal connections to suit your product and are fully water-proofed at the factory being sealed with a glue-filled UV stable heat-shrink prior to dispatch

Why do I need a Balun on my Yagi?

The Ferrite Core baluns can help get the absolute best in terms of performance from any Yagi. It is not understood by many the importance of a balun and what is does so below are a few lines of explanation.

A balun is a Balanced to Unbalanced transformer. The Yagi antenna is a balanced radiator. Coax cable is an unbalanced feedline. When an unbalanced feedline feeds a balanced antenna with no balun in place, common-mode currents result and run back along the outside of the coax cable. This means the Yagi is forced out of balance causing a skew in the Yagi’s pattern and often a loss of Front to Back ratio (F/B) is seen in addition to coax radiation.

In addition to the performance drop, coax radiating can lead to causing interference in your home and those of neighbours too. There is one more very important aspect of using a wideband balun ferrite core types and this can reduce receiver noise levels too in certain instances.

Many household products today produce noise and while it is normally at very low levels, sensitive ham radio receivers could be picked up and prevent weak signals being heard. Often, these noises can be picked up on the coax cable itself which runs up towards and enters the antenna system. The Ferrite cores within the balun not only prevent common-mode currents running back down the coax cable when transmitting, they prevent these stray noises picked up on the coax cable from entering the antenna system and in turn, your receiver.

Technical Specification:

• Balun type: - Straight ferrite core coaxial balun
• Diameter: 20mm
• Length: 20cms
• Connector: N-type
• Operational range: 100MHz - 500MHz
• Power Rating: 1.5KW SSB - 1.2KW CW - 1KW - Data modes, FT8, JT6
