An Excellent Dual Band Yagi for 50/70MHz with 1.2m boom

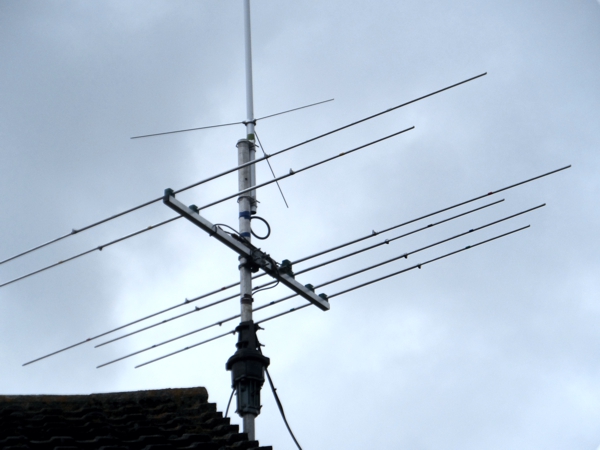

The 4-6-6 Dual Band Yagi has a total of 6 elements, 3 elements are used on 70MHz while 3 elements are used on 50MHz. The 4-6-6 Dual Band Yagi stands aside from the crowd due to the methods used in its design.

The antenna uses no traps or coils, no phasing arrangements and has no need for 'compromise' spacing between elements as the antenna has a set of correctly spaced elements for either band but still deploys only one feed point.

It is made 1/2inch centre elements and 3/8 inch outer elements (70MHz element are one piece 1/2inch). The antenna has fully insulated elements which will ensure continuous high performance. Boom to mast brackets are included which will support 2 inch masts. Boom is 1.25inch square 16SWG aluminium.

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of .01mm)

Specification

• Gain on 50MHz: 6.83dBi @ 50.150MHz (12.44dBi 10m above ground)
• F/B on 50MHz: 10.12dB @ 50.150MHz
• Gain on 50MHz at 10m above Ground: 14.43dBi
• Gain on 70MHz: 7.05dBi @ 70.200MHz (12.76dBi 10m above ground)
• F/B on 70MHz: 18.23dB @ 70.200MHz
• Power Rating: 3kw
• SWR 50MHz: Below 1.3:1 from 50.00MHz to 50.500MHz
• SWR 70MHz: Below 1.5:1 from 69.950MHz to 70.600MHz
• Boom Length: 1.175m
• Weight: 2Kg
• Turning Radius: 1.484m
• Wind Loading: 0.15 Sq Mtr
• Wind Survival: 150MPH
