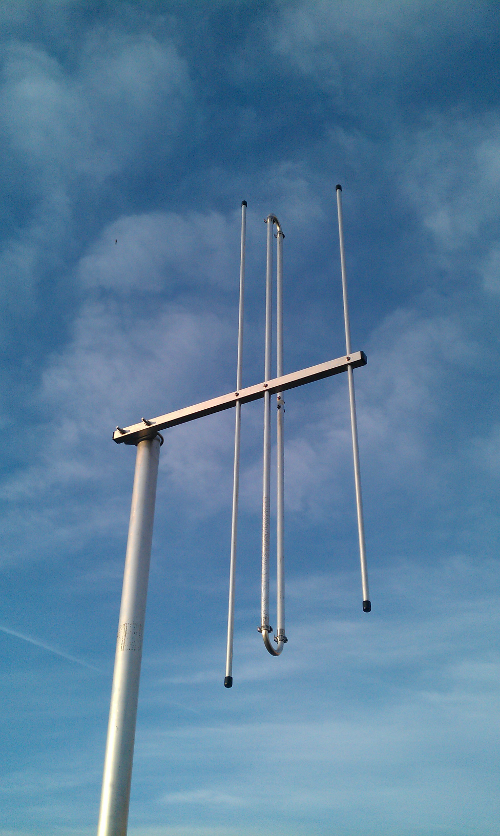

3el 144MHz OWL Yagi for vertical or horizontal use

Only 55cms total length including rear mount!

Improved Performance

The OWL has a class-leading gain per metre of boom figure, distance between reflector and director is 155mm and yet it provides 6.85dBi of free space gain! place this antenna 8m above average ground and with ground gain an impressive 12.68dBi is seen.

Multiband, Performance-Busting Design

Despite its rigidity, the OWL is extremely light weight and this means even in strong winds, snow and ice the OWL will hold its own.

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of .01mm) to measure the elements during production to ensure they are within 0.2mm of what they should be.

This antenna is made with a 13mm and 10mm diameter tube for the folded dipole and the boom sections are 20mm diameter, it is made to perform and to do so for many years with Marine Grade Stainless Steel fixings.

Technical Specification:

• Gain: 12.68dBi @ 144.3MHz 8m above average ground
• F/B: 20.59dB @ 144.3MHz
• Power Rating: 5kw+
• SWR: Below 1.5.1 from 144MHz to 146MHz
• Boom Length: 555cms this include 30cms of rear-mount section
• Weight: 1kg/2.2lbs
• Safe Wind Speed: 160Kph/100Mph
• Vertical Stacking: 1.3m
