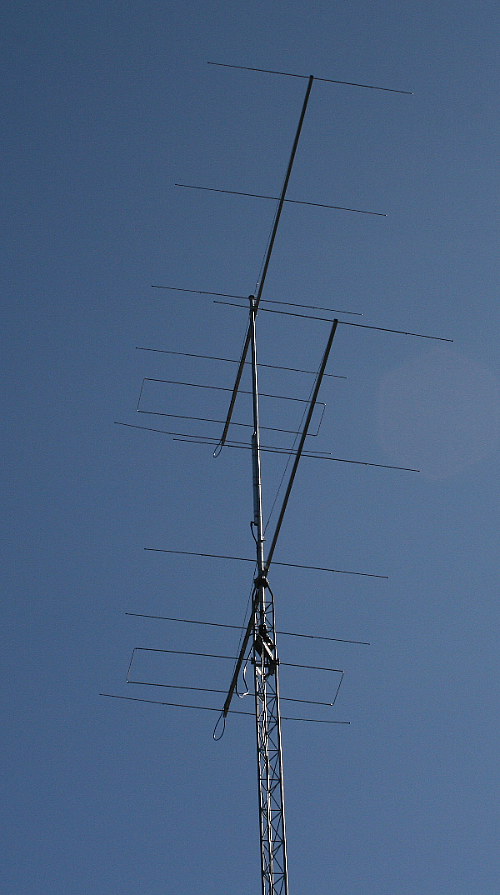

6 element very low-noise LFA2 Yagi designed for DK1MAX

This antenna has very highly suppressed lobes in both azimuth and elevation plots and therefore is ideal for very noisy city locations. If you want to beat the noise in a mid-sized 6m antenna, this is the one for you!

The antenna is made with tapered elements 1/2inch centres and 3/8 inch outer sections. It has fully insulated elements which will ensure continuous, high performance for many years to come. Boom to mast brackets are included with the antennas which will support 2 inch masts. Boom is 1.5inch square 16SWG aluminium.

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of 0.1mm) to measure the elements during production.

Specification

• 11.18dBi @ 50.150MHz
• 31.51dB @ 50.150MHz
• Peak Gain: 11.22dBi
• Peak F/B: 32.21dB
• Power Rating: 5kw+
• SWR: Below 1.2:1 from 50.00MHz to 50.500MHz
• Stacking Distance: 4.5-5.4m (5m recommended)
• 2 Stacked Gain @ 5m spacing: 13.98dBi
• 2 Stacked F/B: 37.54dB
• 2 Stacked Gain @ 5m Spacing 15m above ground: 19.48dBi
• Boom Length: 5.840m
• Weight: 6.12Kg/li>
• Turning Radius: 3.23m
• Wind Loading: 0.22 Sq Mtr
• Wind Survival: 139MPH
