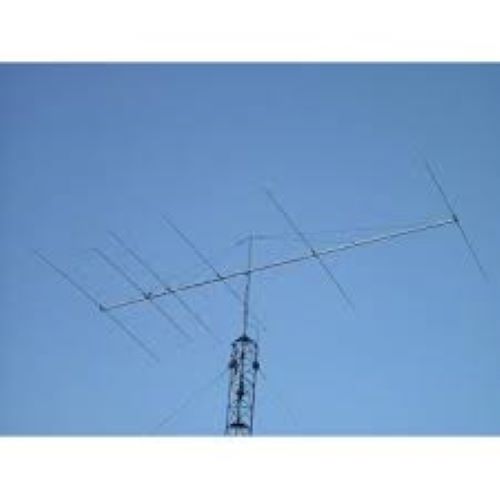

6 element 70MHz low-noise LFA Yagi

This antenna provides a low-noise front-end for your radio so you hear more weak signals. If you suffer with noise or are in a city location this is the antenna for you!

Improved Performance

This compact 6 element 70Mhz LFA provides stunning performance across the whole 4m band (69.950 - 70.500MHz). Hard to beat with a direct 50 Ohm feed-point and no matching losses!

Multiband, Performance-Busting Design

This antenna is made with single piece 3/8inch (9.525mm) elements with a 1/2 inch (12.7mm) by 3/8 inch (9.525mm) adjustable feed loop section. The antenna has fully insulated elements which will ensure continuous, high performance for many years to come. Boom to mast brackets are included with the antennas which will support 2 inch (50mm) masts. Boom is 1.25inch square 16SWG aluminium, no guys required.

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of .01mm) to measure the elements during production to ensure they are within 0.2mm of what they should be.

Technical Specification:

• Gain: 11.83dBi @ 70.200MHz
• F/B: 30.67dB @ 70.200MHz
• Peak Gain: 11.88dBi
• Gain at 10m above ground: 17.47dBi
• Peak F/B: 30.88dB
• Power Rating: 5kw
• SWR: Below 1.1.1 from 69.950MHz to 70.700MHz
• Boom Length: 4.883m
• Stacking Distance: 4m
• 2 Stacked Gain: 14.65dBi
• 2 Stacked F/B: 30.63dB
