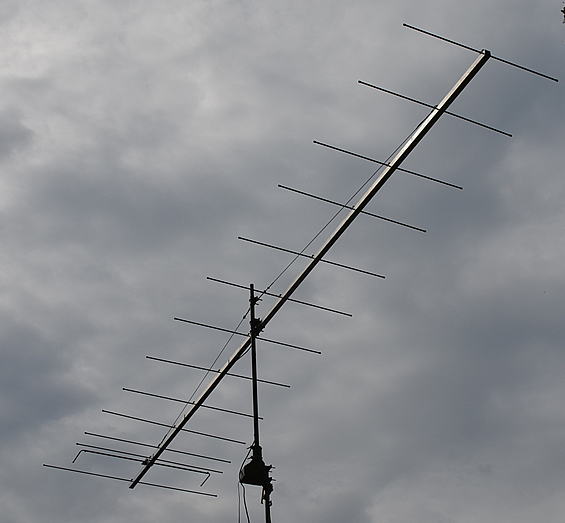

Super Wide Band Broadcast (88-108MHz) OP-DES Yagi

If you are looking for the best of the best from both a performance and mechanical construction perspective then look no further, this is the antenna for you!

Improved Performance

With this antenna OP-DES Yagi for broadcast applications, even weak (DX) stations can be received with ease, no matter where within the 20MHz spread

Multiband, Performance-Busting Design

This antenna has all parasitic elements made from 3/8inch aluminium thick wall tube. The parasitic elements are 3/8 inch while the drive section is 1/2inch tapering to 3/8 inch. All elements are fully insulated from the boom held in place by high quality UV resistant, RF neutral insulators which in-turn are held to the boom via Marine grade stainless steel fixings and fittings. The boom is 1.25inch square (31.75mm). No boom guy is needed with this antenna. If you want an antenna to last and perform in all weathers without SWR or bandwidth shifting, this is it.

The antennas are constructed with the best quality materials in order that the best mechanical construction can be achieved, even a digital caliper is used (with an accuracy of .01mm) to measure the elements during production to ensure they are within 0.2mm of what they should be.

Technical Specification:

• Typical Gain:10.00dBi
• Typical F/B: 25dB
• Gain at 10m (33') above ground: 14.5dBi
• Power Rating: 3kw
• Feed Impedance: 75Ω or 50Ω
• Boom Length: 2.01m - 6' 7''
• Weight: 2.82Kg / 6.21LB
• Turning Radius: 1.903m / 6.24ft
• Wind Loading: 0.08 Square Metres / 0.87 Square feet
• Wind Survival: 331KPH / 206MPH
