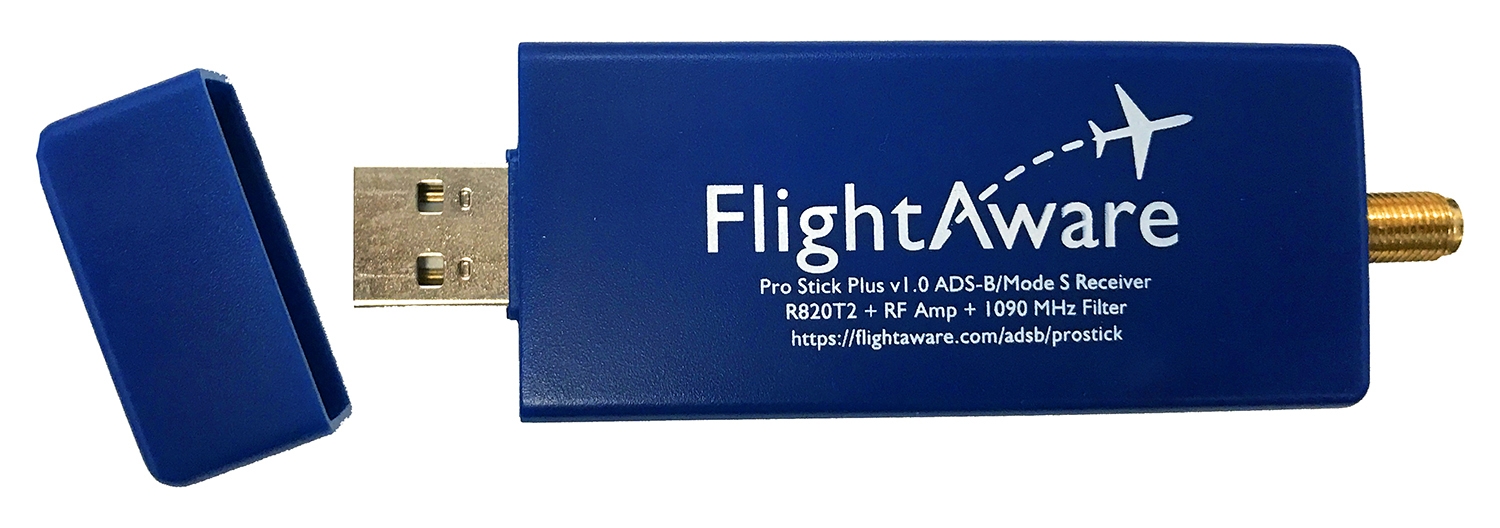

FlightAware has revolutionized the world of USB SDR ADS-B Receivers with the FlightAware Pro Stick and Pro Stick Plus, high-performance USB R820T2 software defined radios (SDR) with a built-in RF amp for maximum ADS-B/MLAT performance.

The first of its kind, FlightAware's Pro Stick is compatible with PiAware or any other device that supports USB RTLSDR receivers, and is less expensive than any other RTLSDR USB receiver in the world. The Pro Stick Plus adds a built-in 1090 MHz bandpass filter for increased performance and range of reception in areas with moderate RF noise as is typically experienced in most urban areas.

The Pro Stick and Pro Stick Plus are roughly the size of a traditional USB stick and require no external power. There are no moving parts.

Pro Stick Plus Features:

• Higher Performance for ADS-B and MLAT
• Increases range 10-20% over Pro Stick when filtering is beneficial
• A 1090 MHz bandpass filter (whether built-in or a separate external part) is generally recommended for users in urban environments or with known high power radio transmitters nearby such as cell phone towers. Filtering is generally not recommended for users in rural environments. Filtering benefits may vary and are dependent on the installation location.
• Adds Built-in 1090 MHz filter with R820T2 SDR and RF Amplifier (USB powered)
• Native SMA connector yields reduced loss due to antenna cabling/adapters
• SMA F connector for easy connectivity to high-performance antenna
• No MCX adapters required
• No external amplifier required

Please contact us for Setup Tuorial

SOFTWARE - Using the Flightaware in standalone mode with a PC you can use the following software -: (please contact us for links)

• RTL-1090
• Plane Plotter (charges may Apply)
• Virtual Radar Server (you will need to run it with RTL1090 above - also requires internet)
• Radarspotting (there are many resources on this site).
