Alinco DX-10 (DR-135UK) 10m Multimode Transceiver - A really great value 29 MHz (10m) all mode AM/FM/SSB mobile transceiver from Alinco. Work the world on this amazing band, makes the perfect mobile station or add a suitable power supply and use at home.

For export customers,it is also PC programmable from 25 - 29.7 MHz

Specification

Frequency range (default): 28.000 - 29.700 MHz
Max Frequency range: 25.000-29.90 MHz (programmable)
Power Output: 1-12 watts FM/FM/CW 0-25 watts USB/LSB
Operating mode: AM/CW/FM/LSB/USB
Current: Transmit 6A max. Receive: 800mA (Max) 400 mA (squelched)
Channel spacing: 10 Hz/100 Hz / 1 kHz / 10 kHz
Memory: 40ch per band (up to 60 per band are programmable via optional software)

Features

Multi-colour display (7 selectable colours or rainbow mode) with backlight
RF gain
LCD S-meter
SWR meter
NB Noise Blanker and ANL function
Clarifier for fine tuning
PC programmable settings
+10 KHz offset button
Scanning features
Dual Watch function
External speaker socket (3.5mm)
Jack for CW key
CW Sidetone: 300Hz-3kHz in 10 adjustable steps
Hi-Cut function (RX tone)
Keypad lock
Programmable time-out timer
Over-voltage protection
PA facility
Reset function
Microphone connector: 6-pin
Antenna connector: PL-259 (SO239)
Power requirements: 13.8 VDC + / -15%
Dimensions: W-173 x H-51 x D-238 mm
Weight: 1.5 kg

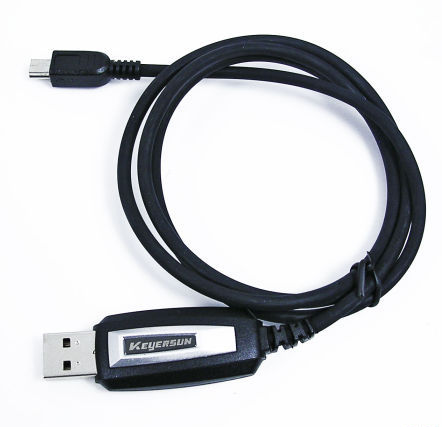

The DX-10 can be programmed from your computer with the optional ERW-10 USB cable and software disk.

Customer Reviews

Price

Quality

Value

Good radio. Great price.

Review by UncleBobo

Alinco is the standard to which all the rest should strive to emulate.
The DX-10 is a value packed radio in its class. Lots of quality features, easy to operate, solid construction and priced appropriately. Highly recommended for a daily driver. The only thing I would change would be to make the undocumented AutoSquelch a hardware controlled feature instead of simultaneous key combinations/software controlled. (And of course, ditch the echo! But that's just my preference. ????) Otherwise this a great little radio at half the price of other "name" brands with the exact same features. I think I'll be getting another so if the guys at MoonRaker would mind putting one aside for me I'll be placing another order next month!
✅ Fast shipping
✅ Easy transaction
✅ Honest pricing
✅ Sturdy packaging
✅ Great communication
MoonRaker checks all the boxes!

Very impressive Radio.

Review by Graham

The DX10 works a treat on the 28/29 MHz band , the switches and knobs can be a little fiddly for big hands like mine, Over all I am very impressed with the reception and the transmission quality.

Cb radio

Review by Lindsey

Very good prices and fast shipping .woukd shop again

First impressions and power up.

Review by darren

Ordered this rig Sunday night shipped Monday and arrived noon Tuesday. Can't believe how manufactures of this equipment manage the selling price point? Totally amazing piece of equipment I am very pleased with my purchase.

good

Review by steven

a none expensive radio for cb

great radio

a great radio, had loads of contacts with it

Alinco DX-10

Review by Star Gazer

Fun radio made several contacts sure to be an enjoyable transceiver
