Ameritron RCS-4X is a remote controlled coax switch that selects 1 of 4 outputs by supplying all control voltages through the coax. Elimination of control cables gives you a fast, neat and inexpensive installation - only 1 coax line for 4 antennas.

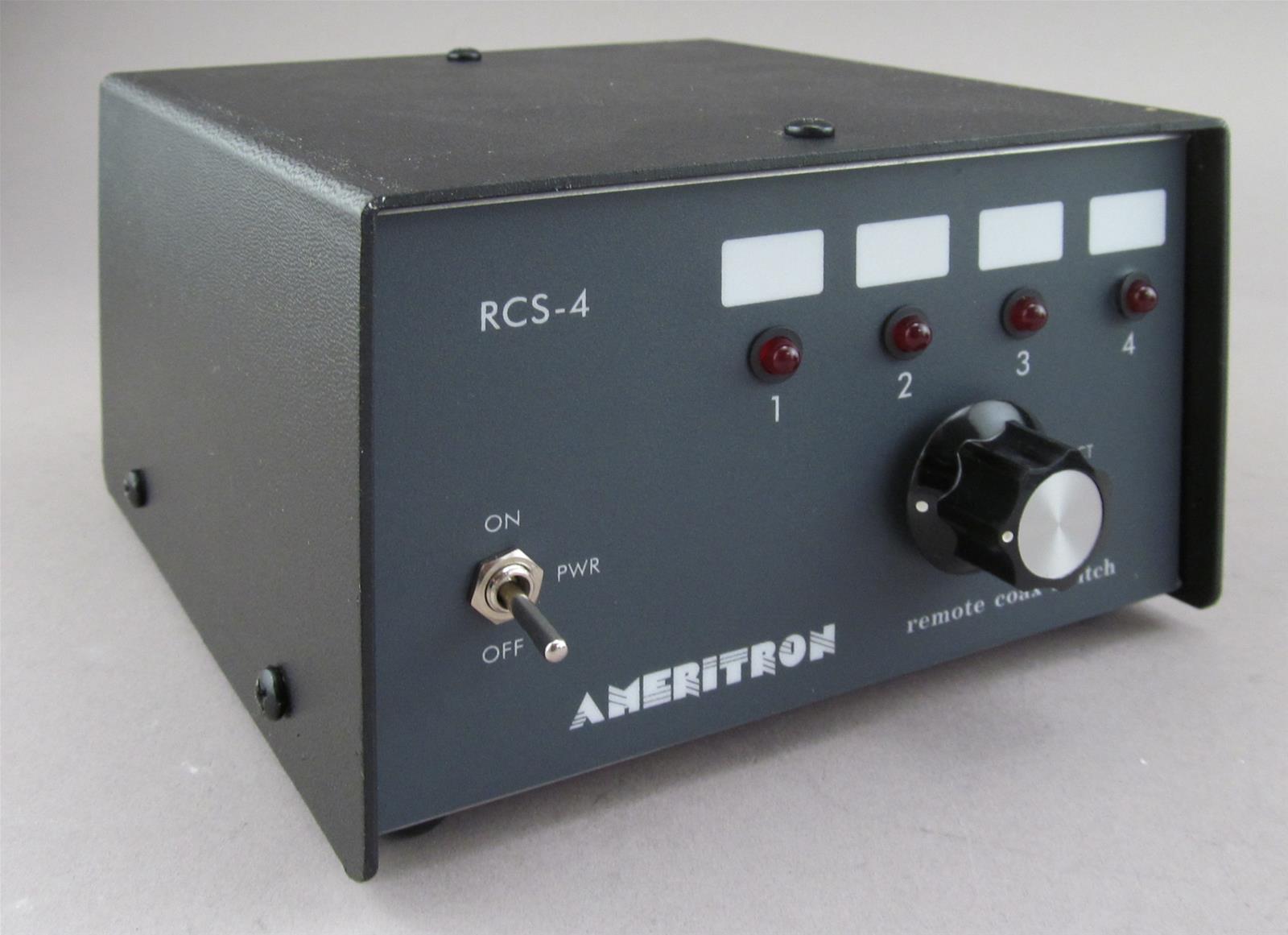

You get two units - the switching box (D-5 3/8 x W-7 x H-3 inches) that can be tower, mast or wall mounted and the control console (D-6 1/8 x W-5 1/4 x H-3 3/8 inches) that is located at your operating station.

The attractive indoor console has bright LED antenna selector indicators.

A steel enclosure provides 100% shielding to prevent RFI and TVI. The weatherproof switching box uses three heavy duty 16 ampere hermetically sealed relays on a rugged G-10 fiberglass circuit board. Quality components are used throughout the entire unit to ensure maximum life for the sometimes difficult-to-reach switching box.

Switching time is 50 milliseconds. Teflon SO-239 connectors provide reliable connections.

Specification

• Operates: 240VAC.
• Frequency: 1.5 - 100MHz
• Handles: over 2.5kW
• 4 positions
• Loss at 30MHz: less than 0.1 dB
• VSWR: Under 1.25:1 1.5-60MHz
• Impedance: 50 Ohms
• Power: >2.5kW average continuous
