Discontinued Anytone AT-288 4m (66-88MHz) Handheld Transceiver

Home Discontinued Anytone AT-288 4m (66-88MHz) Handheld Transceiver

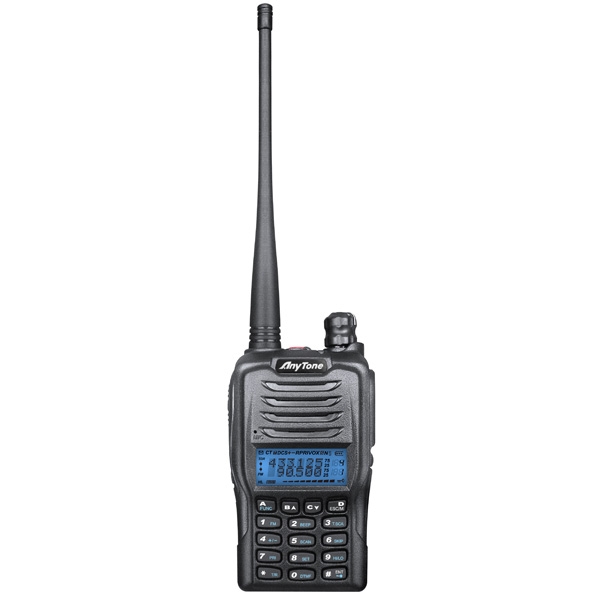

Anytone AT-288 handheld two-way radio.

Out of stock

Notify me when this product is in stock
SKU
10-925
£89.99
£79.99
Email to a Friend

Description / Discontinued Anytone AT-288 4m (66-88MHz) Handheld Transceiver

Anytone AT-288 handheld two-way radio.

Features:
  • Receive FM Radio
  • 128 Signal-duplex channels, three colour LCD backlight display.
  • Voice annunciation (Chinese or English)
  • CTCSS+DCS encode and decode+DTMF encode/decode.
  • Multi-scan mode: VFO scan+ channel scan +priority scan+CTCSS scan+DCS scan.
  • VOX function (3 levels), voice scramble & compander, wide/narrow band.
  • DTMF ANI function.
  • Squelch Tail Elimination function
  • Emergency lighting function.
  • Output Power: 4/5w.

    • Accessories Included:
  • One charger
  • Li-ion battery (1500mAh)
  • Rubber antenna
  • User's manual.

    • Technical Specifications:
  • Frequency Range: 66-88MHz
  • Channel Capacity: 128 channels
  • Channel Spacing: 25KHz (wide band) 20kHz (middle band) 12.5KHz (narrow band)
  • Phase-locked Step:5KHz, 6.25KHz
  • Operating Voltage: 7.4V DC ± 20%
  • Battery life: More than 14 hours (1500mAh), by 5-5-90 working cycle
  • Frequency Stability: ± 2.5ppm
  • Operating Temperature: -20°C +55°C
  • Size: 260mm x 57mm x 37mm (with battery, antenna)
  • Weight: 210g (with battery, antenna)

    • More Information

    Allow Backorder in Clerk.io No
    Product Condition New
    Bar Code/EAN 5056109260079
    Manufacturer Anytone
    Frequency MHz 430 MHz (70cm)
    Item returned for technician testing period 14 days
    Repair period 90 days
    Refund period 14 days
    Exchange period 14 days

    Product Attachments

    QPS288_Plus_Setup_2.03 (6.22 MB)

    Customer Reviews

    Price
    Quality
    Value
    Nice entry to 4m band
    Review by
    Well-built unit.

    Took straight out on a SOTA activation on other bands to see if the stock antenna would pick anything up - just a few crackles.

    Please re-stock a portable antenna upgrade!!

    I am pretty sure demand would come with at least some supply.

    In the meantime I’ll be trying out the mobile antenna with mag mount I bought with the HT - again nice quality made item and I am sure I’ll get some hits with that.

    But really want that portable upgrade for SOTA to be able to reach all those base stations operating on the band!!

    Thanks Moonraker.
    Price
    Quality
    Value
    Excellent 4m backpack radio for hilltops
    Review by
    No need to programme this radio at all. Just simply put it in VFO mode and tune to 70.450. That's it. If you need to QSY up and down a channel, just change to the correct frequency. As long as you remember the calling channel is .450, you don't need anything else it's as simple as it gets! The helical antenna could be better, but that's the nature of this type of radio.
    Price
    Quality
    Value
    a badly supported radio for programming software , its not available anywhere
    Review by
    well made radio, but if your looking to program it with a PC forget it , Anytone doesnt list it on there website.
