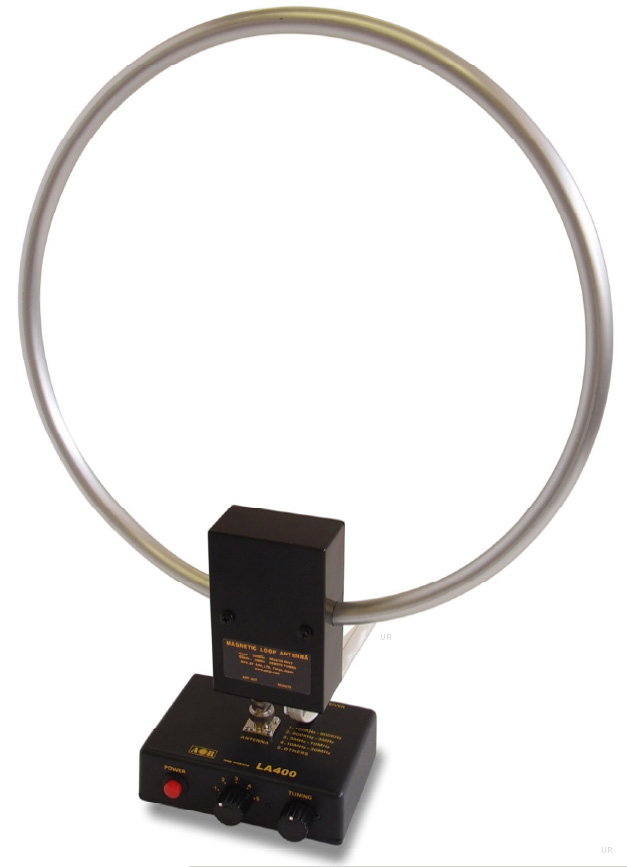

LA400 Wide range receiving magnetic loop aerial

This indoor antenna is ideal when space is at a premium, and because this is a shielded loop, it works effectively against local noise from electrical devices such as televisions, PCs, fluorescent lighting, dimmers, switching power supplies, etc.

4 x selectable band ranges from 150 kHz to 30 MHz allow manual tuning and then fixed operation for covered frequencies from 10-149 kHz and 30-500 MHz.

The LA-400 has a built-in low noise 20dB gain amplifier for superb low noise level reception.

The single supplied loop element is all that is required for the entire reception range. Unlike previous amplified indoor loop antennas, the band switching and fine tuning controls are not tied to the loop element.

With these controls now on the control box and by using the optional LA400-RCK extension cables, it is possible to tune the antenna while the loop element is setup at the best location possible.

Features

• Frequency covers: 10 kHz to 500 MHz.
• Diameter: 1ft.
• Output is via a BNC jack.
• 3.3 foot BNC to BNC patch cable is provided.
• Operates from 12 VDC or via the supplied AC wall adaptor.
