Description / AT-5555 PLUSN – (New Version) Mobile 10M HF Transceiver

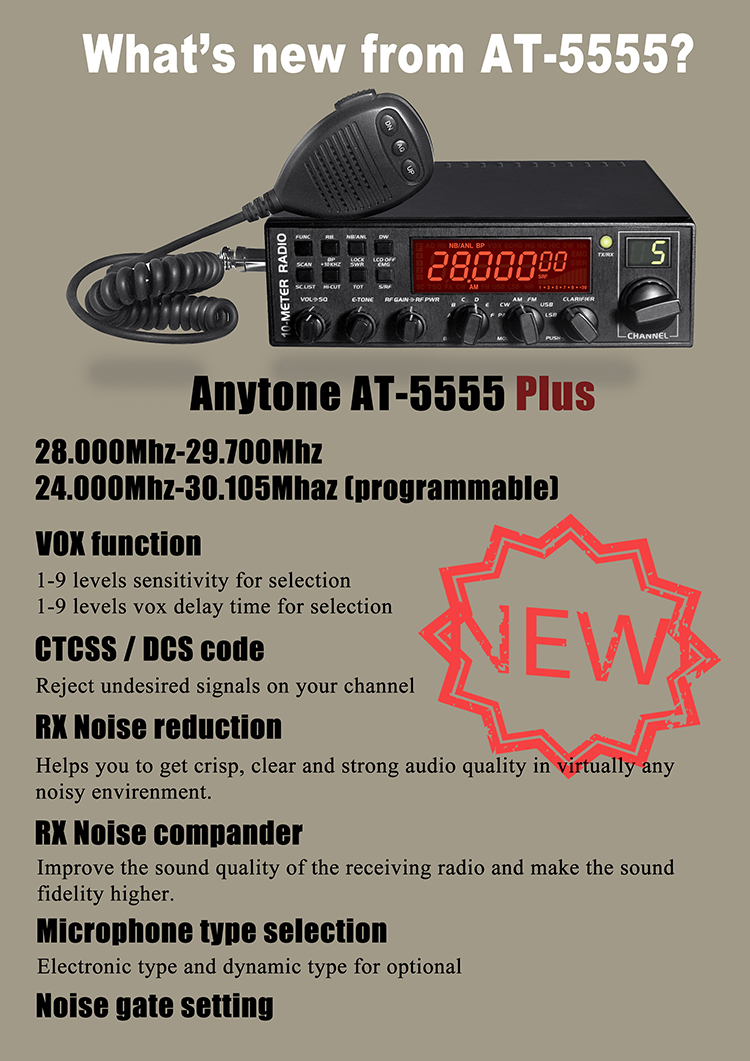

Anytone AT-5555PLUS/N has the new the RX noise reduction option, NRC (extra PCB inside the radio) With a completely new designed PCB board the Anytone AT-5555 PLUS is one of the most modern and up-to-date 10M radios on the market.

Updates and new (menu) functions are:

  • VOX
  • CTCSS/DCS codes
  • RX compander
  • Noise gate
  • RX noise reduction (extra PCB inside the radio)
  • Microphone type selection: electret or dynamic
  • Program cable connector on the backside of the radio (program cable is optional)
  • Extra ventilation holes on the top and bottom cover

Amateur radio HF mobile transceiver, covers the 28 MHz frequency band reserved to Amateur Radio communication. Frequency range 28.000-29.700 KHz, adjustable frequency steps (10Hz, 100Hz, 1KHz or 10KHz). Adjustable TX RF power, 12W max AM/CW, 40W max FM/SSB. Multiple Clarifier operating modes. Flexible menu functions and PC programming software to fit radio to each operator’s demand. Large backlighted amber colour LCD Display with digital S/RF Meter, shows full 7-digit frequency readout, plus 2- digit LED display. RF Gain, RF Power, Clarifier, Dual Watch, Scan, TOT, NB/ANL, LOCK, LCD Off, +10KHz, SQ/ASQ functions.

High quality Dynamic microphone with UP/DN frequency and AQ controls. DC Voltage display function. SWR protection and power supplied voltage protection. Software allows to program frequency range limits, frequency channels, Mic Gain limits, factory reset function, CW side tone frequency and volume, RB holding time and much more.

Features:

  • Backlighted LCD Display (amber colour) with 7-digit frequency readout
  • 2-Digit Channel Number readout
  • 6 Frequency Bands, 60 Channels (programmable) in each band
  • RF Power max 12W AM/CW, 40W FM, 40W SSB
  • Digital S/RF Meter, RG Gain control, RF Power control
  • Scan/SC List, Dual Watch, EMG, RB, NB/ANL, LOCK, LCD Off, TOT, HI-Cut
  • Dynamic Microphone with UP/DOWN/AQ (Auto Squelch) controls
  • Quick UP/Quick DOWN frequency selection
  • PA (Public Address) circuit
  • S/SQL (manual or automatic Squelch control)

Technical Specifications:

  • Frequency Range 28.000 - 29.700 MHz HF 10 Meter Band AM/FM/SSB/CW
  • Frequency Range 25.615 - 30.105 MHz (AT-5555EX version only)
  • Antenna Connector UHF SO239
  • Temperature Range -15/+50 °C
  • Input Voltage 13.8V (15.9V max / 11.7V min) - 9A max at 40W SSB PEP
  • Radio is fully PC programmable (with optional PC Interface Cable)
  • Dimensions: 28cm x 25cm x 6cm
  • Weight: 2.8kg

More Information

Allow Backorder in Clerk.io No
Product Condition New
Bar Code/EAN 5056109274793
Manufacturer Anytone
Frequency Band Amateur Bands
Frequency MHz 10 MHz (30m)
Item returned for technician testing period 14 days
Repair period 90 days
Refund period 14 days
Exchange period 14 days

Product Attachments

Press to skip carousel

We found other products you might like!

Customer Reviews

Price
Quality
Value
It's a sleeper and all that I expected and more
Review by
I received my Anytone AT5555 Plus N today and after perusing the owner's manual powered it up and I am pleasantly amazed at the ease of operations. The antenna that I connected is a simple homebrew end fed coax cable dipole known as a "flower pot antenna" or "T2LT" that's suspended vertically from a limb of our tall redwood tree at only 7 feet from the feed point up to 23 feet. I made it out of the cheapest China made RG58 that I could find on eBay; 100 ft for $16.99, as an experiment. (Watch "Build an easy 10 meter vertical antenna for DX" by Ham Radio DX.) Tuned at 1.01:1 at 28.4000 I hoped I'd have some success, but only dreamed of what came next. My Technician privileges for voice are 28.3000-28.5000 SSB only, so searching the 31 10k step frequencies on band B, I made contact with three stations from my QTH in Rio Dell, CA; grid CN70wl. First RX 59 from Minnesota reported TX 59. Second RX 57 from Texas reported TX 57. Third RX 57 reported TX 57 all within an hour of sunset, just before the band closed. I also monitored stations in Mexico, Washington, and Colorado. This transceiver is so easy to dial in with the clarifier. Each push on it changes to the next digit left until it returns to the right and can be fine tuned on each step for clear reception. I haven't even used the NR, yet. It has full sound and can be turned up way too loud. Checking with one station I found it spot on frequency. I'm studying for my General that I'll take next month, so I will have full privileges on 10 meters including AM, FM, and SSB up to 29.7000. My next antenna projects for it are an inverted V wire dipole for NVIS, a 1/4 wave telescopic with four 8' radials a few feet off of the ground, and another flower pot T2LT out of stranded Mil-Spec RG58 A/U. 10 meters is opening and it's only going to get better. I think I've found my favorite base and portable radio. It's perfect timing to get on the band and have some QSOs. IMHO, the AT5555 Plus N is the best value and CB is a bonus; I think.???? After months considering alternatives at all powers and prices all I can say is this one's a sleeper and the best bang for the bucks. HOORAH!!!
P.S. The radio comes preprogrammed and is easily programmed via Windows with the cable that's NOT INCLUDED. I didn't buy one, as I used the TYT cable I have for my TYT TH-9800. Prolific USB to MINI USB at the back of the radio. The fun has just begun.
