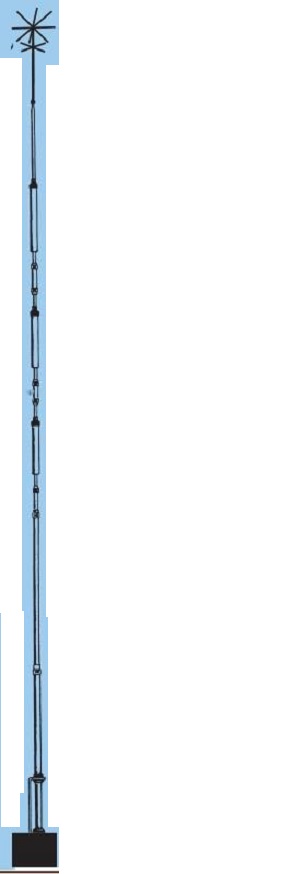

Discontinued AV-18AVQII Hygain 10/15/20/40/80m HF Vertical
The classic is back with improved design including three separate Hy-Q traps for 10 through 40m and a loading coil and an effective radiator for 80m.
- SKU
- 11-857
£449.95
Description / Discontinued AV-18AVQII Hygain 10/15/20/40/80m HF Vertical
The classic is back with improved design including three separate Hy-Q traps for 10 through 40m and a loading coil and an effective radiator for 80m. It may be installed on a short mast driven into the ground or it can be roof mounted with the addition of the AV-14RMQ kit. Note: The AV-18AVQII is a combination of the AV-14AVQ plus the MK-80 add-on kit for 80m.The bands covered are as the AV-14AVQ plus 80m. To upgrade an existing AV-14AVQ order the MK-80 add-on kit.
Key Features/Specifications:
- Bands: 10,15, 20, 40 & 80m
- Power 1500W (PEP) except 80, 1000W
- Gain 3dBi nominal
- VSWR <1.5:1 typical
- Vertical angle 16 degs
- Horizontal angle 360 degs
- Connector SO-239
- Mast size 38.1 - 41.275mm
- Wind survival 112kph (Guyed)
- Height 5.48m
- Weight 5.44kg
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109207302 |
| Manufacturer | Hygain |
| Frequency Band | Amateur HF |
| Frequency MHz | Multiple HF Bands |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
