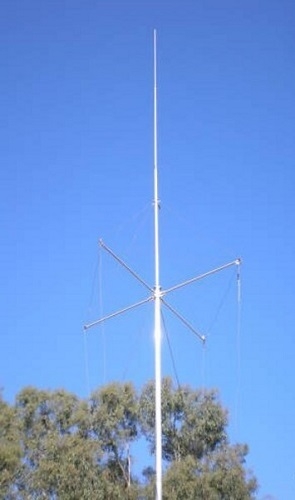

Discontinued AV-18HTJR Hygain 10/15/20/40/80m HF Vertical
The AV-18JR HyTower-Jr is the remarkable new HF antenna from Hy-Gain. Its performance is similar to the World's best performing antenna the AV-18HT.
- SKU
- 11-853
£599.95
Description / Discontinued AV-18HTJR Hygain 10/15/20/40/80m HF Vertical
The AV-18JR HyTower-Jr is the remarkable new HF antenna from Hy-Gain. Its performance is similar to the World's best performing antenna the AV-18HT.
This antenna has almost no losses, your ground system determines the efficiency. Stub-decoupling is used to give full-size quarter wave radiators on 40, 20, 15 & 10m.
Requires good ground system for optimum performance. The antenna is self-supporting in winds up to 65kph (use guy wires for higher winds)
Features/Specification
- Bands 80, 40, 20, 15, 10m
- Power 5kW
- Impedance 50 Ohms
- Low SWR 1.2:1 all bands
- Automatic band switching
- Exceptional wide bandwidth
- Main radiator 50.8mm (2in) high-strength, heavy walled aluminium
- Stub-decoupling to give full-size quarter wave radiators
- Super efficient cage loading on 80m
- Swaged aluminium tubing at top
- Self supporting in winds up to 65kph
- Mounts on 31.75mm (1.25in) plumber's pipe
- Height 11.88m (39ft)
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109207272 |
| Manufacturer | Hygain |
| Frequency Band | Amateur HF |
| Frequency MHz | Multiple HF Bands |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
