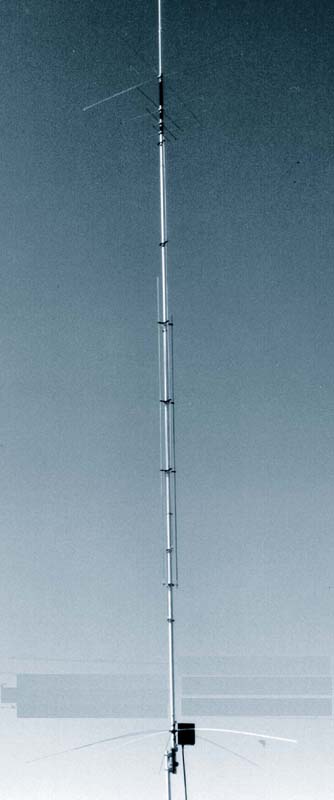

Discontinued AV-640 Hygain Patriot HF Vertical
Hy-Gains new AV-640 Patriot HF vertical is the best built, best performing and best priced multiband vertical available today.
- SKU
- 11-850
£749.95
Description / Discontinued AV-640 Hygain Patriot HF Vertical
Hy-Gains new AV-640 Patriot HF vertical is the best built, best performing and best priced multiband vertical available today. Make full use of your sunspot cycle with the Patriots low angle signal. The AV-640 uses quarter wave stubs on 6, 10, 12, and 17 meters and efficient end loading coil and capacity hats on 15, 20, 30, 40 meters. Instead of typical lossy can traps, the AV-640 resonators are placed in parallel not in series. End loading of the lower HF bands allows efficient operation with a manageable antenna height.
Key Features/Specifications:
- Bands: 40, 30, 20, 17, 15, 12, 10, 6m
- Power: 1.5kW
- Gain: 3dBi nominal
- Vertical angle: 16 degs
- 2:1 SWR Bandwidth: 40m 150kHz, 30m 175kHz, 20m 500kHz, 17m 500kHz, 15m 500kHz, 12m 500kHz, 10m 1.5MHz, 6m 1.5MHz
- VSWR: < 1.5:1 typical
- Wind survival: 127 KPH
- Wind surface area: 0.22m2
- Height:7.87m
- Weight: 9.9kg
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109207241 |
| Manufacturer | Hygain |
| Frequency Band | Amateur HF |
| Frequency MHz | Multiple HF Bands |
| Antenna Connection | SO239 |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
