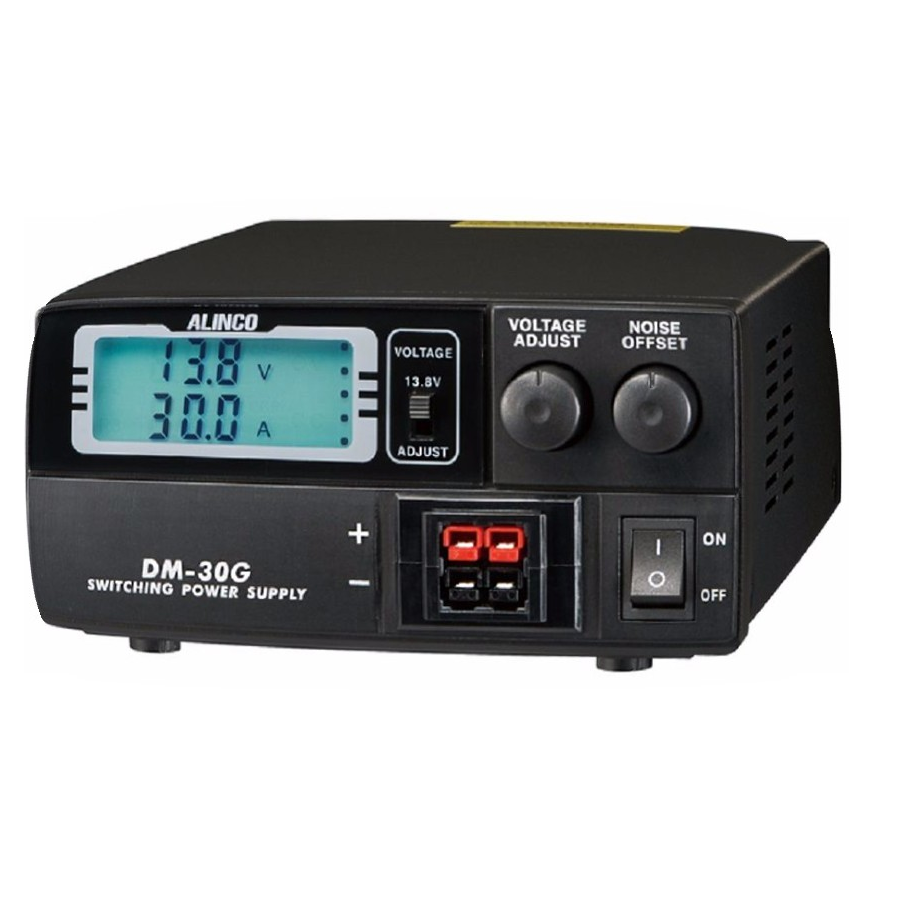

30A (peak) 13.8V DC switch mode power supply. Compared to the similar DM-30-E model, this version has Anderson pole connections.

Features:

Switching mode with 4 DC outputs

HF fixed

Short-circuit proof

Clear digital display for volt and amps

With programmable voltage preselection unintentional voltage changes are made impossible

2 terminals (max. 5A)

Main connection terminals on the back (max 30A)

Technical Data:

Operating voltage: 230VAC / 50Hz

Continuous load: 20 amperes

Peak load: 30 Amp (short-term)

Output Voltage: 9-15V DC infinitely adjustable / 13.8V DC fixed

Ripple & Noise / Ripple & Noise: Less than 80mV at rated load

Ventilation: temperature controlled fan

Lighted digital indicator for Volt / Amp

Fixed voltage switch 13.8VDC

Control for controlling disturbances of the clock circuit

Dimensions WxHxD in mm: 155 x 75 x 205 mm

Weight: 1.5kg

Allow Backorder in Clerk.io	No
Product Condition	B-Grade
Bar Code/EAN	80-180
Manufacturer	Alinco
Item returned for technician testing period	14 days
Repair period	90 days
Refund period	14 days
Exchange period	14 days
