DX-10<

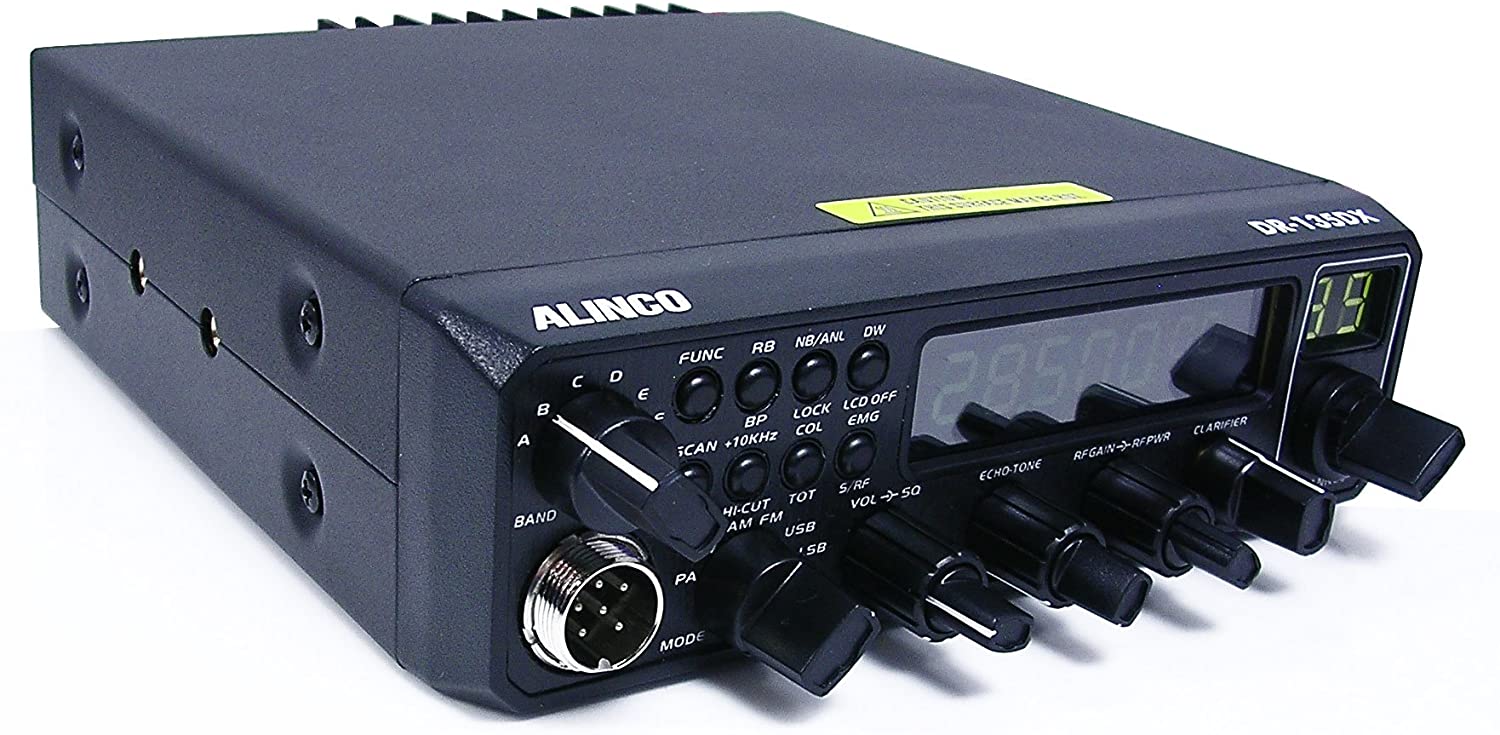

A really great value 28 MHz (10m) all mode AM/FM/SSB mobile transceiver from Alinco. Work the world on this amazing band, makes the perfect mobile station or add a suitable power supply and use at home.

For export customers, it is also PC programmable from 25 - 29.7 MHz

• Frequency range (default)  28.000 - 29.700 MHz
• Max Frequency range -  25.000-29.90 MHz (programmable)
• Power Output 1-12 watts FM/FM/CW   0-25 watts USB/LSB
• Operating modes  AM/CW/FM/LSB/USB
• Current: Transmit 6A max. Receive: 800mA (Max) 400 mA (squelched)
• Channel spacing  10 Hz/100 Hz / 1 kHz / 10 kHz
• Memory 40ch per band (up to 60 per band are programmable via optional software)

Features & Functions:

•     Multi-colour display (7 selectable colours or rainbow mode) with backlight
•     RF gain
•     LCD S-meter
•     SWR meter
•     NB Noise Blanker and ANL function
•     Clarifier for fine tuning
•     PC programmable settings
•     +10 KHz offset button
•     Scanning features
•     Dual Watch function
•     External speaker socket (3.5mm)
•     Jack for CW key
•     CW Sidetone 300Hz-3kHz in 10 adjustable steps
•     Hi-Cut function (RX tone)
•     Keypad lock
•     Programmable time-out timer
•     Over-voltage protection
•     PA facility
•     Reset function

• Microphone connector - 6-pin
• Antenna connector  PL-259 connector (SO239)
• Power requirements  13.8 VDC + / -15%
• Dimensions (WxHxD)  173 x 51 x 238 mm
• Weight 1.5 kg

• The DX-10 can be programmed from your computer with the optional ERW-10 USB cable and software disk.
