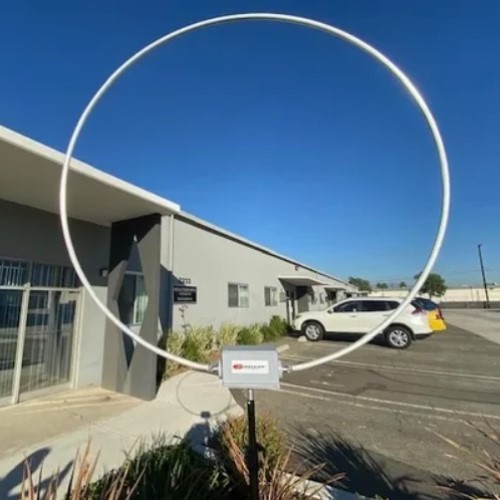

The CHA RXL is a new design high performance Low Frequency (LF), Medium Frequency (MF), and High Frequency (HF) receive-only loop antenna that can be permanently mounted outside on a mast or used on a camera tripod next to an RV or on an apartment balcony. It's broadband design is ideal for Software Defined Radios (SDRs), panadapters, hams wanting a small low-noise receive-only antenna, shortwave listeners (SWLs), AM broadcast band listeners, and anybody needing a small receive antenna.

Features:

• Wideband design – LF / MF / HF
• Highly directional
• Balanced input preamplifier to eliminate environmental noise and ground loops
• Receives on new 2200m and 630m ham bands
• Flexible mounting and power options
• Stealthy – Navy gray loop fades into the background sky.

Receive loops are very quiet and highly directional. With the built-in preamplifier, the CHA RXL will enable clearer reception than many large horizontal wire or vertical antennas. The CHA RXL covers all frequencies between 137.5 KHz and 30.0 MHz. Become a WSPR Reporting Station on the new 2200 and 630 meter bands and join the fun!

Loop Amplifier Specifications:

• Frequency: 135.7 KHz – 30.0 MHz continuous
• Power: 12V DC (120V AC wall adapter included USA ONLY)
• Size: 36 in. Loop
• Weight: 7 lbs.
• Mount: Mast or Camera Tripod
• Operating voltage: 12-14 VDC – Polarity Protected, Over-Voltage protection 15.5V – 20V (sustained voltage above 18V may damage the preamp)
• Gain: 25 dB @ 2.5 MHz, 12.5 dB @ 30 MHz (see graph)
• Noise Figure: < 5 dB
• P1dB: >0 dBm relative to the output
• OIP3: > +20 dBm
• Input (no damage): +20 dBm
• RF Power Applied to the Output: 0.25W maximum (do not transmit into the pre-amp)

Bias-T Specifications:

• Operating Voltage: 12-14 VDC – Polarity Protected, Over voltage protection 15.5V – 20V (sustained operation above 18V may trip the resettable fuse)
• Maximum Current: 300 mA max.
• Insertion Loss: < 0.25 dB @ 30 MHz
• VSWR: < 1.3:1 @ 30 MHz

The antenna system consists of:

• 1 X 36" Loop
• 1 X Tuning Box
• 1 X T-BIAS
• 1 X "L" Bracket & Hardware
• 1 X Table Top Rubber Feet
