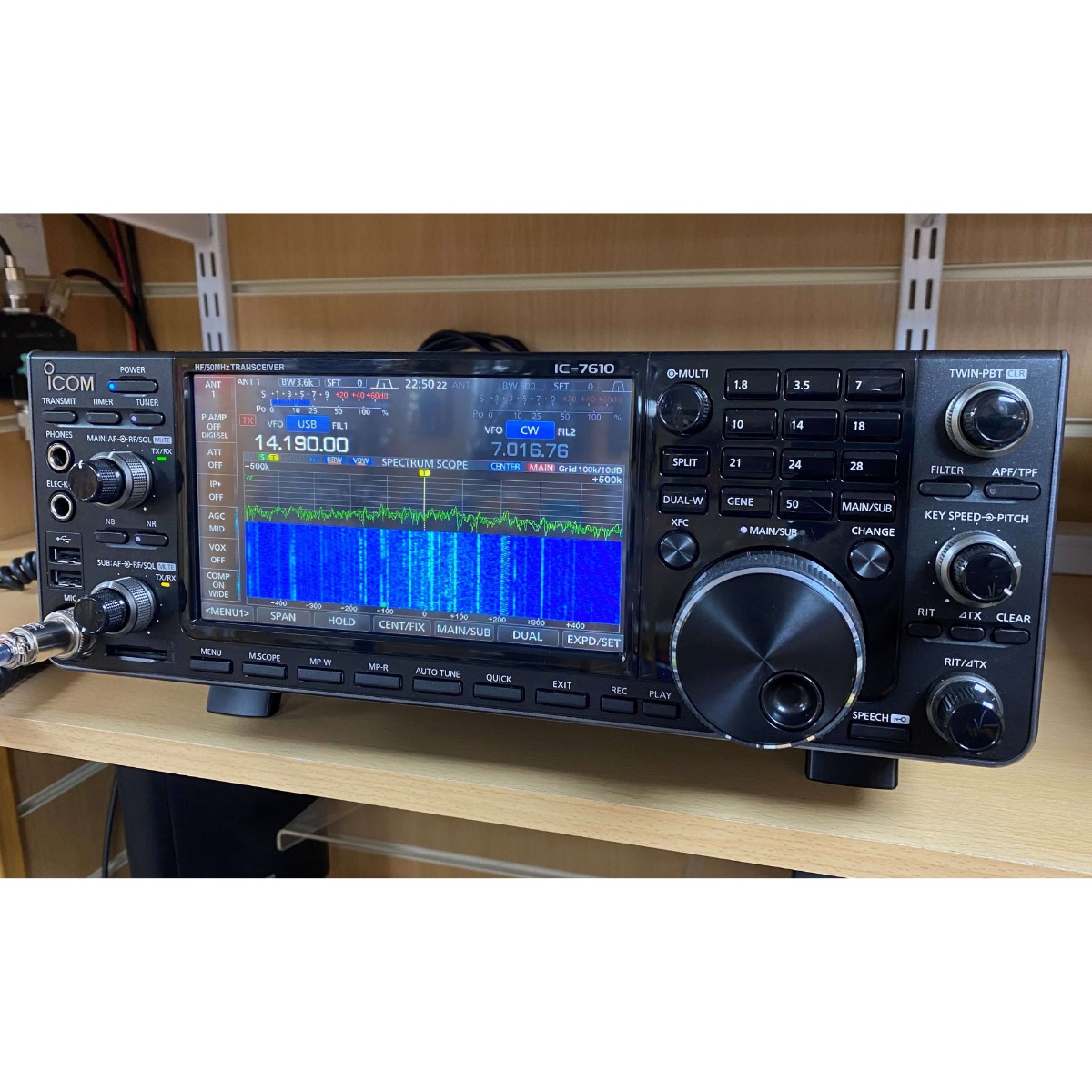

B-Grade Icom IC-7610 - Base SDR Transceiver (HF / 50MHz).

Following on from the technology incorporated into the IC-7300, the IC-7610 adopts the same RF direct sampling system for signal processing. By converting the analogue signal directly to a digital signal and processing it within the FPGA (Field Programmable Gate Array), it provides improved transmission phase noise and excellent RMDR of 105 dB (at 1 kHz detuning).

The IC-7610 will have two independent receivers, enabling simultaneous reception of two frequencies in different bands/different modes.

The IC-7610 will also feature high-speed, high-resolution performance. The real-time spectrum scope supports different bands and a dual display that can monitor different modes. It will also have a waterfall display function that displays received signals in time sequence. The DIGI-SEL unit will be available to both the main side and the sub side of the receiver. In addition, the IC-7610 adopts a large 7-inch full-colour touch screen panel.

Key Features/Specifications:

• Further evolved RF direct sampling method
• Excellent RMDR: 105 dB realized
• Dual watch function can receive simultaneously in different bands and different modes
• DIGI-SEL unit that eliminates excessively strong signals is installed in the main and sub of the receiving section
• High-speed real-time spectrum scope and waterfall display function
• 7-inch full-colour touch panel, outstanding operation and visibility
