B - GRADE (GOOD CONDITION)

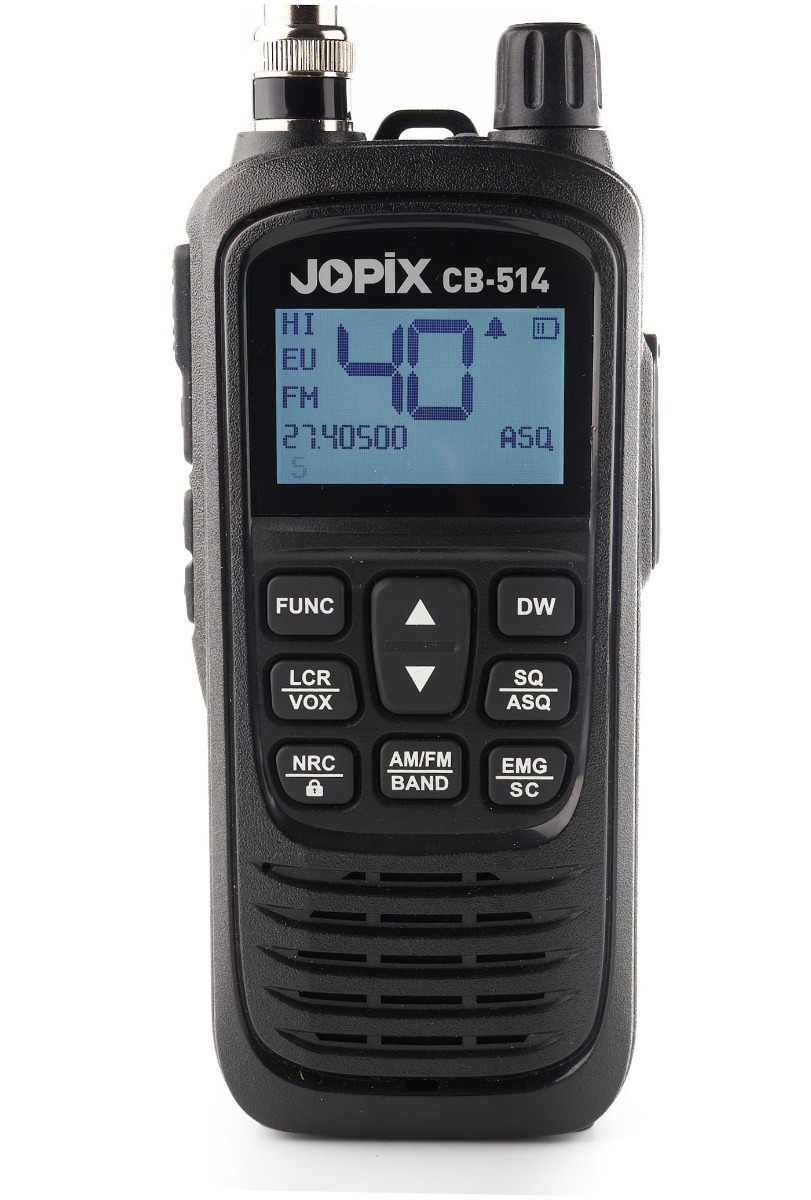

The Jopix CB-514 is a european multinorm standard portable CB radio, which means it can operate on several frequency bands used in different countries in Europe.

It has a noise reduction circuit (NRC) that helps improve the quality of the received sound, together with the adjustable ASQ and SQ functions (5 and 25 levels respectively) you will get exceptional reception quality.

Other features included at the CB-514 are the FM/AM operation, big display with 4 layouts, nightlight buttons, BNC antenna, 2-pin accessory socket (type Kenwood) , dedicated band button, multi-band operation with access to all European frequencies, auto-squelch, VOX, High-Low power transmition, Roger beep and dual watch.

The CB-514 is a verstatile CB radio that can be used both as a mobile station by installing the 12V car cigarette lighter plug adapter and the connector for the external antenna (optional), but of course, also as a portable station using your own 1800mAh Li-Ion battery thats charges by USB-C power adapter.

PLEASE NOTE : Manual missing from box - Can be downloaded online.

Specification

• 40 Channels european multinorm
• Frequency: 26.965 MHz to 27.405 MHz
• Export Mode: 25.610 to 30.100 MHz
• AM/FM Mode
• Large display LCD (4 layouts)
• Speaker audio power 1W
• Menu functions
• NRC (Advanced Noise Reduction Circuit)
• VOX (Hands-free communications)
• Maximum emision power 4 W (High/Low power selection )
• 12 VDC input (via optional adapter) or 5 VDC by USB-C (with adaptader included)
• Power input: 7.4V±0.4V (Li-Ion Battery)
• USB Charge input 5v DC @ 1000mA
• Mains Adaptor voltage 240v AC
• Battery: 1800mAh capacity
• Size 54 (W) x 150 (H) x 35 (D) mm (without antenna)
• Weight 325 g (without antenna) 650 g (Including
antenna, battery, box and accessories)
• Dimensions: 150 x 54 x 35 mm (without antenna)
• PLEASE NOTE : Manual in box missing. Can be downloaded online.
• Operating temperature -20°- +60° Celsuis
