The Jopix CB-514 with Car Kit can be used as mobile transceiver in a car, van, 4×4 or truck thanks to the suplied 12V car cigarette lighter plug adapter with connection for external antenna and the cap that protects the portable antenna connector.

Jopix CB-514 can also be used as a portable thanks to its 25 cm BNC antenna.

It is a european multinorm standard portable CB radio, which means it can operate on several frequency bands used in different countries in Europe. The Jopix CB-514 have a noise reduction circuit (NRC) that helps improve the quality of the received sound.

Together with the adjustable ASQ and SQ functions (5 and 25 levels respectively) you will get exceptional reception quality.

Specification

• Frequency range 26.565 – 27.405 MHz DC
• Power input: 7.4V±0.4V (Li-Ion Battery)
• USB Charge input 5v DC @ 1000mA
• Mains Adaptor voltage: 240v AC
• Battery: 1800mAh capacity
• Size: W-54 x H-150 x D-35mm (without antenna)
• Weigh: 325 g (without antenna) 650 g (Including antenna, battery, box and accessories)
• Dimensions: 150 x 54 x 35 mm (without antenna)
• Operating temperature: -20°- +60° Celsuis
• Channels 40 european multtinorm
• AM /FM Mode
• Large display LCD (4 Layouts)
• Speaker audio power: 1W
• NRC (Advanced Noise Reduction Circuit)
• VOX (Hands-free communications)
• Maximum emision power: 4 W (High/Low power selection )
• 12 VDC input (via optional adapter) or 5 VDC by USB-C (with adapter included)

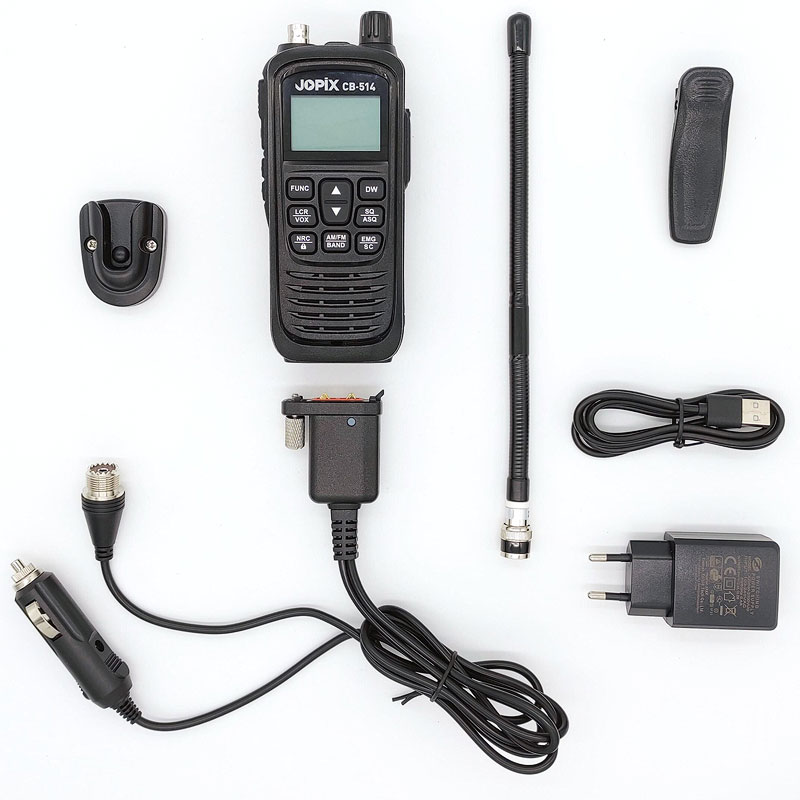

Whats in the box

• CB Radio
• BNC Handheld Antenna
• CarKit with 12V plug car and external antenna connection
• Cap for the antenna
• USB-C Charging Cable
• USB Power Adapter
• 1800mA Li-ion Battery
• Belt Clip
• Mounting Stud
• User Manual English
