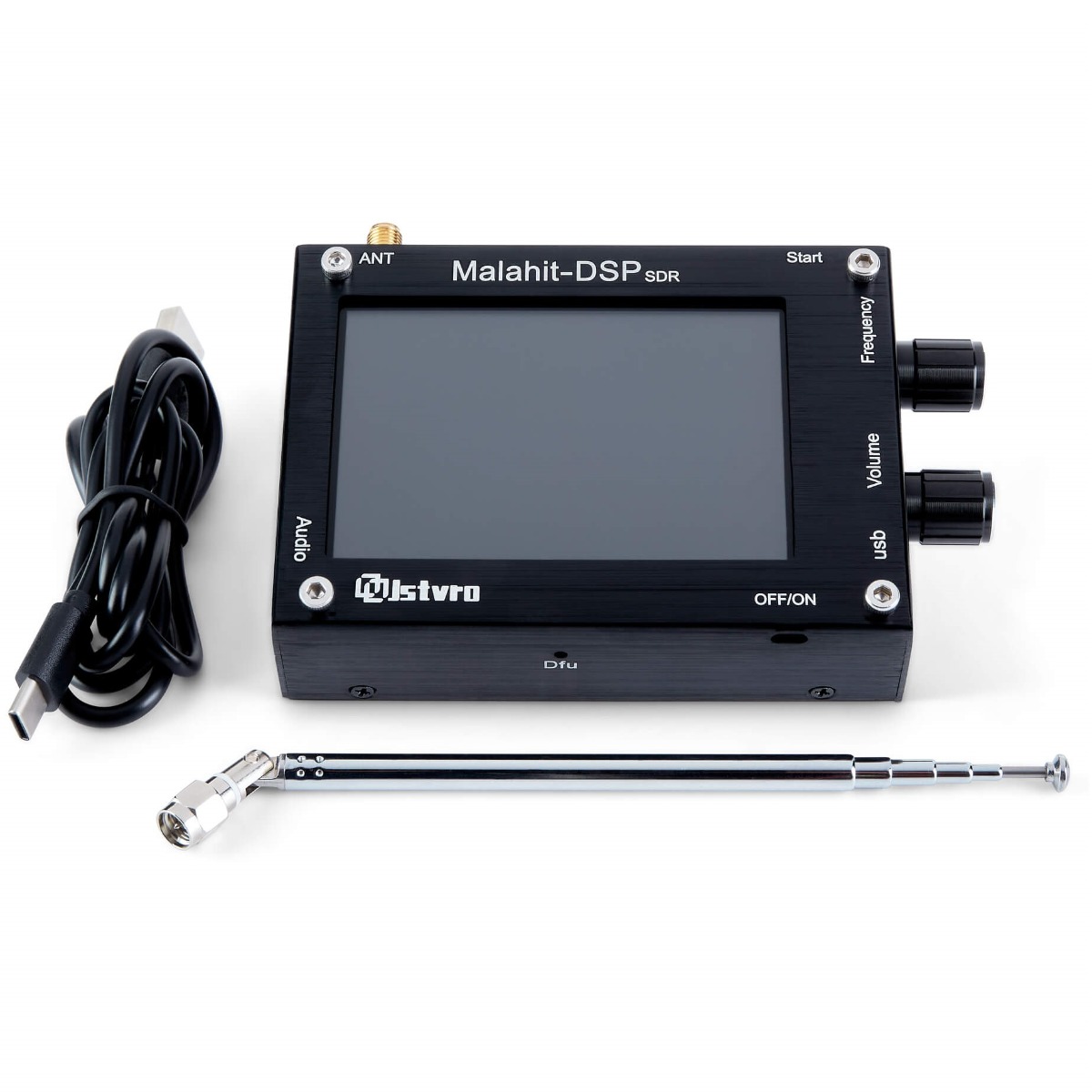

The Malachite SDR is a self-contained SDR receiver covering all modes 50KHz to 250MHz and 400MHz-2000MHz

Features

• DSP SDR Receiver for Malahit
• Capacitive touch screen
• Flash via USB cable
• Default frequency range: 50KHz-2000MHz
• 3.5 inch capacitive screen
• 4-layer board structure, higher performance than two-layer PC
• The radio is built on the principle of SDR the function is determined by loaded software
• Frequency range from 50KHz to 250MHz and 400MHz-2000MHz
• Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer
• The powerful stm32h743 with a clock frequency of 480 MHz is applied
• There is a built-in UHF
• Controls: 2pcs; encoders with buttons and touch screen
• It is powered by an external TYPE-C (for Huawei mobile phone) interface or battery (built-in 3000mah lithium battery)
• Consumption: 300mA when listening to headphones
• Connect to computer via USB, which can transfer CAT, IQ and audio
• 160 kHz span, with scalability
• Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB
• Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB
• SMA female antenna socket
• Motherboard size: 100 x 70mm
• Please note these are Firmware 1.10c Revion2 open and active 50KHz to 250MHz and 400MHz-2000MHz
