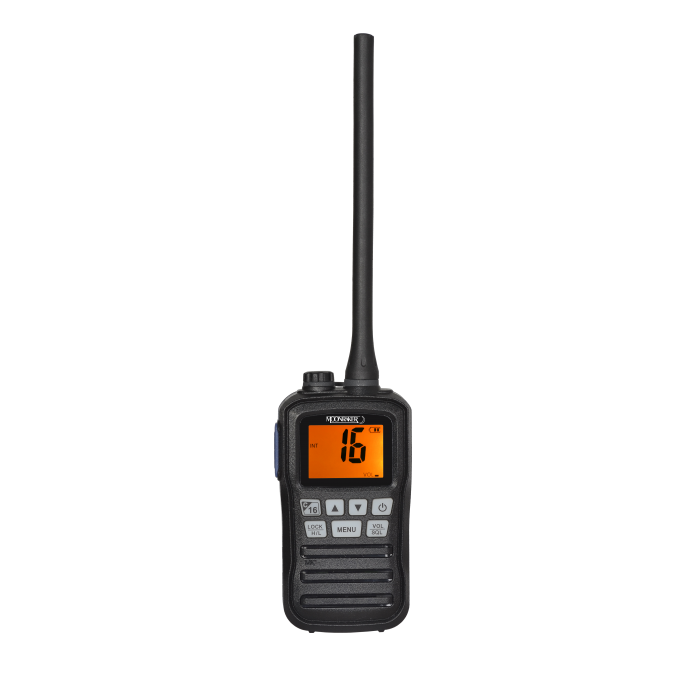

The Moonraker MHR-100 VHF Marine Transceiver has become one of the most popular and best selling handheld marine transceivers. This is a compact high performance marine handheld.

The MHR-100 has large keys and an easy to grip body for smooth operation. It includes 200 programmable channels with quick channel selection.

Float and flash technology - if the MRH-100 falls into the water it floats and has a flash alarm.

Waterproof Rating IP67 - Water resistant up to 1 meter for 30 minutes.

Key Features/Specifications:

• Frequency Range: TX - 156-162MHz / RX - 156-163MHz
• Waterproof Rating: IPX77 (1 meter depth of water for 30 mins)
• Float and Flash Technology: Falling Water Flash Alarm
• Output Power: 3W/1W (Max 3W)
• High/Low Power Selectable
• Talk Range: 5-8Km
• Storage Channels: 200 Programmable Channels
• Quick Channel Selection with Favourite Channel Function
• Call Channel Function
• Dual Watch and Triple Watch
• Priority Channel Selection
• 2 Step Power Saver
• Scan Function
• Vibration Draining Function
• Battery Save
• Battery Capacity: 5x850mAh (Rechargeable Batteries)
• Also works with Standard Alkaline Batteries (Not Included)
• Keypad Lock
• Size: 63x 119 x 35mm
• Weight: 136g

Transmitter Data

• Output power: 3W/1W
• Modulation: FM(16K0G3E)
• Adjacent Channel Selectivity: ≥65dB
• Maximum Frequency Deviation: ±5KHz
• TX Audio Distortion: ≤5%
• Output Current: ≤1.3A/0.8A
• Spurious Emission: ≤0.25μW

Receiver Data

• RX Sensitivity: ≤ 0.2µV
• Squelch Sensitivity: ±5KHz
• Intermodulation Anti-interference: ≥68 dB
• Spurious Response Rejection: ≥70 dB
• Rated audio output power: ≥0.6W
• Rated audio distortion: ≤5%
