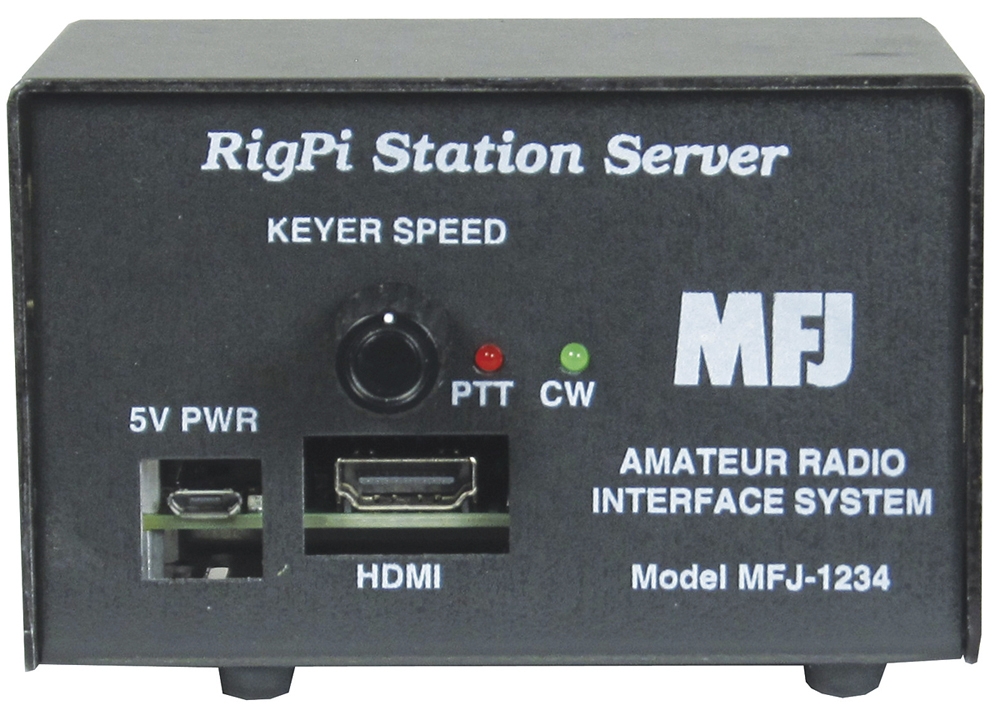

B GRADE MFJ-1234 Pi Based remote radio server with full shack control over the internet

Remotely operate using any web browser on your mobile phone, iPad, tablet, laptop, desk-top etc.

>Operate all modes SSB, CW, FM, digital-any transceiver mode.

• Operate digital modes including FT8 and RTTY. WSJT-X, Fldigi are installed.
• Look-up calls using the included FCC database or optional QRZ XML subscription.
• Monitor DX spots and watch for unworked or unconfirmed calls.
• Design, maintain multiple logs. Up-load ADIF logs to ARRL LoTW server.
• Send Morse code from a mobile device, keyboard or paddle.
• 32 user programmable macros gives great control flexibility.
• Single-click updating.Has I/Q Input for SDR radios.
• Onboard VoIP server gives outstanding 2-way audio.
• Includes email, word processing and spreadsheet programs.
• Modify and program RigPi Station Server features using a text editor.
• Multi-Radios Use any internet browser on Windows, Mac, Chromebook, Android, iOS, Linux computers, laptops, tablets and phones.
• Two or more hams from different locations can operate different radios at the same time using one MFJ-1234.
• In addition to using a browser, you can use these apps: CommCat Mobile for iOS and CommCat for Windows.

Hardware

• RSS is a Raspberry PiTM computer running Linux and RigPi Keyer, RigPi Audio boards.
• RigPi Keyer board uses the K1EL WinKeyer3 IC for keyboard or paddle input.
• RigPi Audio board is used for VoIP for remote operations, digital modes and l/Q spectral display (Panadaptor).
• RSS radio and rotor control uses Hamlib, a library of over 200 radios and 30 rotors. Update when new radios/rotors are added.
