B - GRADE (NEW LIKE PRODUCT CONDITION - OPENED BEFORE)

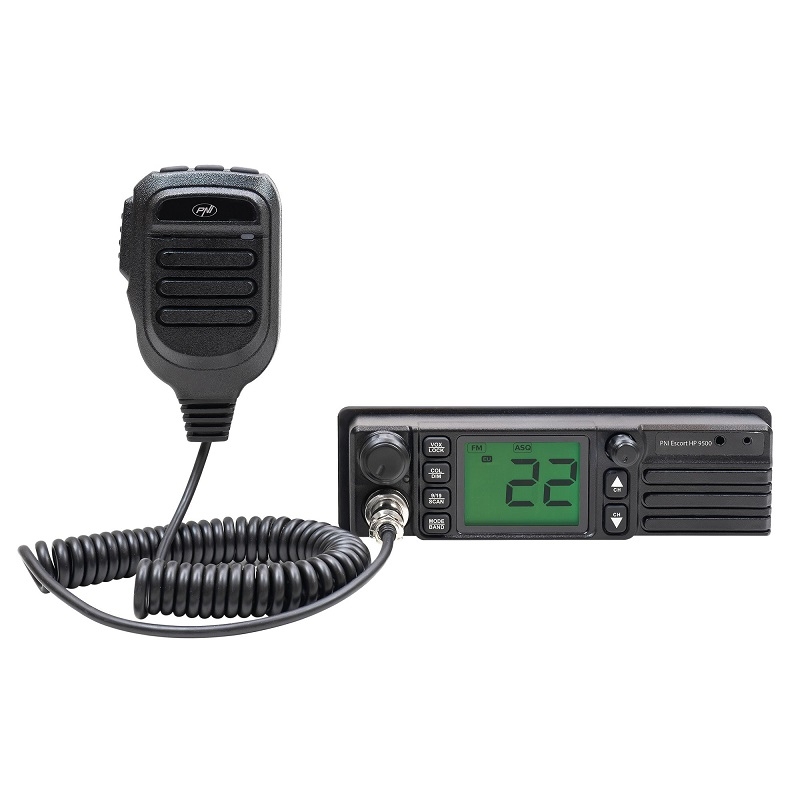

CB PNI Escort HP 9500 radio station.

An excellent product equipped with everything needed to communicate in the CB band - PNI Escort HP 9500 is a reliable CB station that ensures clear communication over long distances. With operation on AM and FM, multi-standard, 5-level automatic Squelch and adjustable Squelch, large multicoloured lighting screen, the HP 9500 is equipped with all the basic functions necessary for CB band communication. On the front panel it has a 2-pin Kenwood connector for using the station hands-free.

Multi-band CB station - CB PNI Escort HP 9500 station allows communication in the main European frequency bands. Set the norm corresponding to the country you are in by simply pressing the MODE / BAND key. The selected band (UK, EU, DE) will be displayed on the screen during the use of the station.

Ultra-compact design, front speaker, 1 DIN mounting - PNI Escort HP 9500 has a robust, compact design making this station easy to place in any space in the car. The package includes a 1 DIN housing for mounting the station on board the car. The HP 9500 is a reliable companion for drivers of cars, trucks and trucks.

Lighter plug included - CB PNI Escort HP 9500 is powered by a voltage of 12V or 24V. The detachable power cord and the cigarette lighter plug required for power supply are included in the package.

FEATURES:

Scan channel

ASQ - 5 levels

Keypad lock

Adjustable ASQ

Urgent channel

Multicolored screen: blue, red, cold green, purple, cyan, warm green, light blue

VOX

Manual squelch

Accessory connection: 2 pin Kenwood plug

Operating temperature: -26 ° C ~ + 60 ° C

Dim

Rear panel connections - Additional speaker connection

Front panel connections - Jack 2 pins

TECHNICAL SPECIFICATIONS:

Broadband type: AM / FM

Channels: 80 AM / FM

Frequency: 26,965 - 27,405 MHz

Microphone type (pins): 6 pins

Audio speaker power: 3 W

Sensitivity (20dB SINAD): 0.5μV (AM), 0.25μV@12Db (FM)

Audio signal distortion: less than 5% @ 1KHz

Emission power: 4 W

Modulation: 2 KHz ± 0.2% KHz (FM)

Feeding: 12 V / 24 V

Current absorbed: max. 1.8A

Dimensions: (W x H x H / Weight) 187 x 56 x 85 mm / 786 g

Montage 1DIN: Yes
