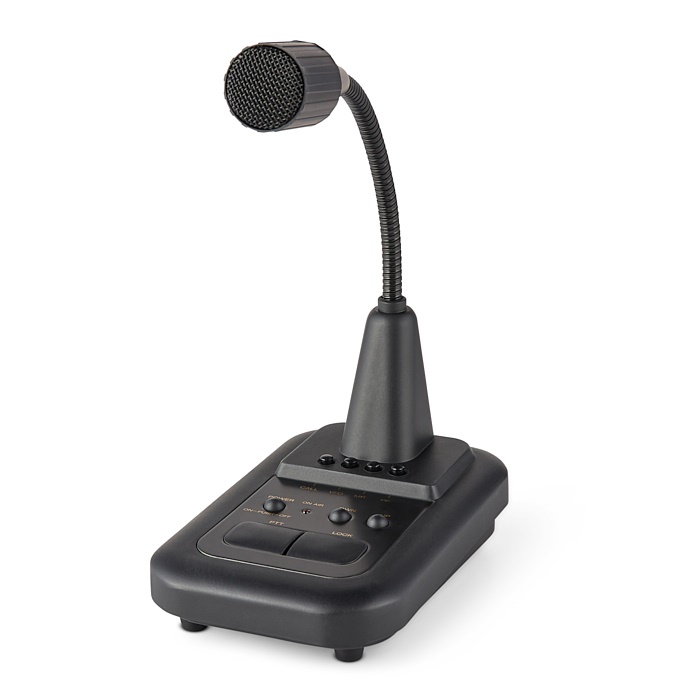

SM-508 Deluxe desk microphone

Suitable for most modern radios with required lead

Features:

• High-sensitivity condensed microphone element - ensures better voice quality
• Flexible goose neck supporting the microphone
• Power ON/OFF Switch
• On Air indicator
• PTT Switch
• PTT Lock Switch
• UP/Down Switches for compatible models
• Mode Switch for optimising audio (FM/SSB)
• Variable Microphone level adjustment
• Compatible leads available for
• Icom 8 Pin Round, Yaesu 8 Pin Round and modular, Kenwood 8 Pin Round and modular
• Note older radios may need you to install batteries but most modern radios do not need batteries

Technical Specifications:

• Microphone: Ceramic Microphone
• Power Consumption: 2mA (RX) 3mA (TX)
• IC: 1 piece
• Transistor: 11 pieces
• Diode: 6 pieces
• Output Voltage: 0 – 30mV (RMS)
• Output Impedance: 500 –100k ohms
• Compressor Level: 45dB (HIGH) 10dB (LOW) 6
• Power Source: DC3V
• Dimensions: 100mm (W) x 155mm (D) x 35mm(H)
• Weight: 450g

Available Connection Leads (buy seperately):

• SHARMAN AV-73K - FOR KENWOOD MODULAR
• SHARMAN AV-73Y - FOR YAESU MODULAR
• SHARMAN AV-24Y 1 - FOR YAESU 8-PIN R
• SHARMAN AV-24K - FOR KENWOOD 8-PIN
• SHARMAN AV-24I - FOR ICOM 8-PIN ROUND
