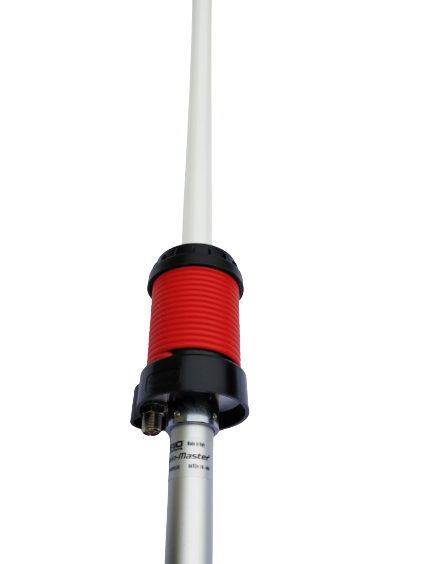

B Grade Sirio Gain-Master 5/8 Wave - CB/10m Base Antenna 25-30 MHZ (No Tuning Required)
Gain-Master is a 0.625 high tech fiberglass base station antenna for wide band antenna from 10m to 12m* amateur band
- SKU
- 80-506
£143.95
Description / B Grade Sirio Gain-Master 5/8 Wave - CB/10m Base Antenna 25-30 MHZ (No Tuning Required)
Gain-Master is a 0.625 high tech fiberglass base station antenna for wide band antenna from 10m to 12m* amateur band
Key Features/Specifications:
- Base Antenna 25.5-30MHz
- Telescopic Fibreglass Tubes Construction
- Type - 0.625 wave centre fed vertical dipole
- Impedance - 50Ohms
- Radiation - Omnidirectional
- Polarization - Linear Vertical
- Max Gain on Horizon - 1-2 dB higher than conventional 5/8th wave
- Max Power - 500 watts CW continuous / 1000 watts short time
- Lightning Protection - All metal parts are DC grounded, inner conductor shows DC-Short
- Connector - UHF Female PTFE Insulator, and gold plated centre pin.
- Composition - White Fibreglass tube radiator / Stainless Steel Hardware
- Wind Resistance - up to 160km/h
- Length (approx) - 7360mm with bracket / radiator 6850mm
- Packing dimensions - 1950 x 110 x 120mm
- Weight (approx) 3kg
- Mounting Mast - 35-54m
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | B-Grade |
| Bar Code/EAN | 80-506 |
| Manufacturer | Sirio |
| Frequency MHz | CB Radio - 27-28 MHz (11m) |
| Antenna Connection | SO239 |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
