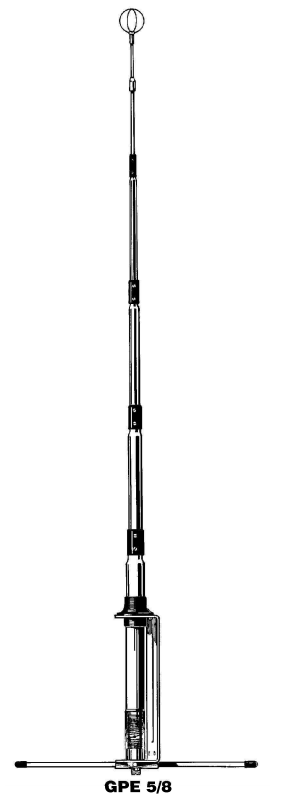

CB or 10 Metre Ham Band Base station antenna. Omni-directional-tuned.

Key Features:

• CB Base station antenna, Omnidirectional
• Factory tuned at mid-band
• Low radiation angle for excellent DX
• Coil protected by transparent cover
• Whip equipped whit waterproof jointing sleeve
• Made of aluminium alloy 6063 T-832
• Protection from static discharges DC-Ground

Electrical Data:

• Frequency range: 26-28 MHz
• Impedance: 50Ω
• Radiation (H-plane): 360° omnidirectional
• Polarization: linear vertical
• Gain: GPE 27 5/8: 1.2 dBd, 3.35 dBi
• Bandwidth @ SWR ≤ 2: ≥ 1400 KHz (120 channel)
• SWR @ res. freq.: ≤ 1.2
• Max. power: 250 Watts (CW) continuous 750 Watts (CW) short time
• Feed system / position: Transformer DC-ground / base
• Connector: UHF-female
• Mechanical Data

Materials:

• Aluminium, Steel, Copper, Nylon
• Wind resistance: 130 Km/h
• Wind load: GPE 27 5/8: 188 N at 150 Km/h
• Wind surface: GPE 27 5/8: 0.13 m²
• Height (approx.): GPE 27 5/8: 6500 mm
• Weight (approx.): 2500 gr
• Radial length (approx.): GPE 27 5/8 1320 mm
• Mounting mast: Ø 35-42 mm
