B Grade

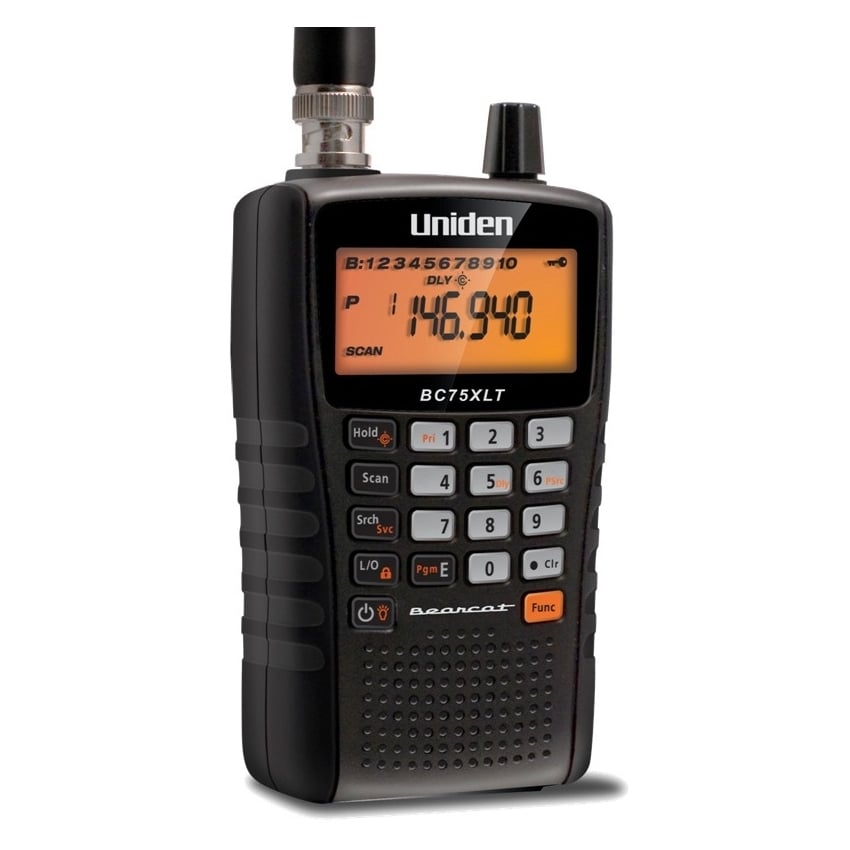

Main features include 300 memory programmable channels, close call RF capture with Do-Not-Disturb, automatic close call detection and tune into nearby transmission, 10 pre-programmed service searches, three power options and many more.

Specification

• Channels: 300 Channels
• Frequency Range: 25 - 512MHz
• Frequency Steps: 5/6.25/8.33/10/12.5
• Banks: 10 (30 channels each)
• Sensitivity: SINAD 12dB, Nominal
• Operating Temperature: Normal: -20°C to +60°C :-10°C to +50°C
• ScanRate: 90 channels per second
• Search Rate:Normal: 90 steps per second Hyper: 270 steps per second
• Close call feature
• Priority Sampling: 2seconds
• Scan Delay: 2 seconds
• IF Rejection (at 453.25MHz):80dB
• Internal Speaker: 24 ohm, 0.8W Max
• Audio Output: Internal Speaker:360mW nominal (24ohm)
• Headphone (L-ch): 4mW nominal (32ohm)
• Current Drain: Squelched: 120mA
• Full Output: 280mA
• Power Requirements: 2xAA Alkaline Batteries (3VDC) or 2 x AA RechargeableNi-MH Batteries (2.4V DC)or Connect to PC with USB cable (5.0V DC 500mA)
• Antenna: 50 ohms (Impedance)
• External Jacks: Antenna Jack (BNC Type)
• Phone Jack (3.5mm)
• USB Jack (5pin Mini USB B Type)
• Dimensions: 67mm(W) x 32.7mm(D) x 115mm(H)
• Weight: 175g (without antenna and battery)
