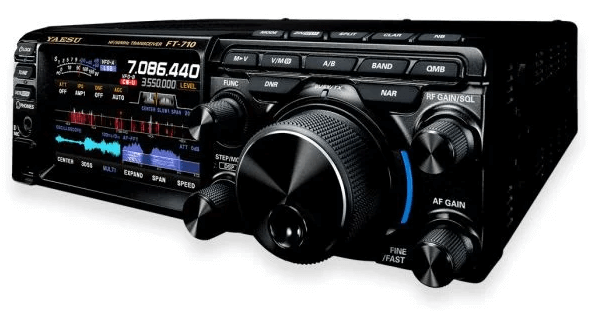

Step into the world of high-performance amateur radio with the Yaesu FT-710 Field SDR HF Transceiver.

This compact powerhouse brings you the latest SDR technology from Yaesu's top-tier models, delivering crystal-clear communications in a portable package.

With adjustable transmit power up to 100W and sophisticated band filtering, you'll cut through the noise whether you're chatting across town or around the globe.

This ultra-portable Field model is great for your outdoor adventures. The FT-710 proves that big performance can come in small packages, making it the perfect companion for radio enthusiasts who demand the best, wherever their hobby takes them.

The FT-710 Field a remarkable device crafted specifically for field operations.

Essentially, the Yaesu FT-710 Field is a variant of the FT-710 series to meet the needs of portable operation. To save weight and valuable space, the SP-40 speaker is not included, but a convenient carrying strap for the unit is.

Please note that the package does not include the SP-40, which is used for the Acoustic Enhancement Speaker System (AESS). For customers who desire to enjoy the remarkable AESS features with their FT-710 Field, the SP-40 remains an optional accessory.

Features

• YAESU Unmatched SDR technology emphasizes the Receiving Performance
• Band Pass Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
• RF Front-End design with the 250MHz HRDDS (High Resolution Direct Digital Synthesizer) enables Phenomenal Multi-Signal Receiving Characteristics
• QRM rejection by the dual core 32-bit high-speed floating decimal point DSP for SHIFT/ WIDTH/ NOTCH/CONTOUR/ APF (Audio Peak Filter)/ DNR (Digital Noise Reduction)/ NB (Noise Blanker) and 3-Stage Parametric Equalizer
• High Resolution 4.3-inch TFT Colour Touch Panel Display
• 3DSS (3-Dimensional Spectrum Stream)
• VMI LED (VFO Mode Indicator) placed around the VFO dial shows the current operating mode (VFO-A, VFOB, Memory Mode and Clarifier/Split Operation)
• “PRESET” Mode Function most suitable for FT8 Operation
• External Display Connection Terminal (DVI-D)
• Built-in High Speed Automatic Antenna Tuner with 100 channel memory
• Support the FC-40 Auto Antenna Tuner
• SD Memory Card can be used to save the communication record, transceiver setting, the memory contents, screen capture images, and to update the firmware
• Two USB Ports (Type-A and Type-B)
• Other essential features such as CW ZIN and SPOT, IPO (Intercept Point Optimization), and Remote Operation with Network Remote Control System to name a few

Specification

• Emission Modes: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM)
• Supply Voltage: DC13.8V ±15%
• Power Output: 5 - 100W (5 – 25W AM Carrier)
• Dimensions: w-239 x h-80 x d-247mm
• Weight (Approx.): 4.5kg

TX Frequency Range:

• 1.8MHz band – 50MHz band (Amateur bands only)
• 70MHz–70.5MHz (UK Amateur bands only)

RX Frequency Range:

• 30KHz–75MHz (Operating)
• 1.8MHz–29.699999MHz (Specified performance, Amateur bands only)
• 50MHz–53.999999MHz (Specified performance, Amateur bands only)
• 70MHz–70.499999MHz (Specified performance, UK Amateur bands only)
