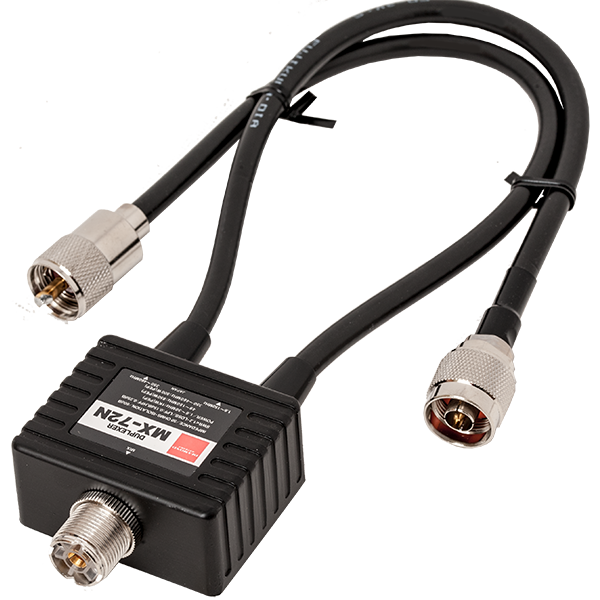

SOLD! C Grade Diamond MX-72N - Duplexer (HF) (144/430MHz)
Diamond duplexer
- SKU
- 80-246
£37.95
Description / SOLD! C Grade Diamond MX-72N - Duplexer (HF) (144/430MHz)
Diamond duplexer
Key Features/Specifications:
- Dimensions: 46W x 25H x 57D mm
- Weight: 220g
- Passband width: LPF/1.6 to 30MHz 49 to 150MHz, HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
- Power rating: 1.6 to 30MHz: 400W (CW) 1kW (PEP)
- 49 to 150MHz: 150W (CW) 400W (PEP)
- 400 to 460MHz: 100W (CW) 250W (PEP)
- Insertion loss: LPF/Less than 0.15dB HPF/Less than 0.25dB
- Isolation: LPF: More than 60dB
- Impedance: 50ohms/ than 1.2:1
- Socket: SO239
- Connection: 1 x PL259 1 X N-Type
- Coaxial cable :5D-2VS (35cm)
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 80-246 |
| Manufacturer | Diamond |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
