This is the CHA MPAS 2.0 - the most popular Modular Portable Antenna System in the WORLD!

Use the Ideal NOALOX 4 oz. Antioxidant Compound to improve the efficiency of aluminium conductor connections. This compound provides additional inner-strand and inner-conductor current paths.

The Modular Portable Antenna System (MPAS 2.0) is a concept allowing the radio operator to configure and deploy the antenna system in a variety of configurations.

Some of the possible deployment configurations:

• Vertical
• Horizontal
• Sloper
• Inverted “V”
• Inverted “L”
• NVIS
• Balcony
• Vehicle (Stationary)
• Man-Pack

Technical Specifications:

• Frequency: 6M - 160M
• Power: 100 SSB or 50W CW.
• Mounting Configuration: 3/8-24 Thread

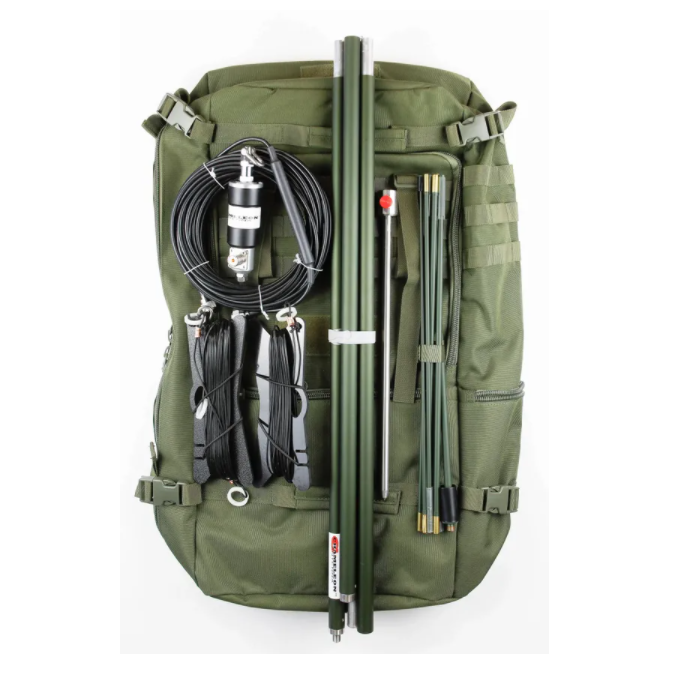

The antenna system consists of:

• 1 X CHA HYBRID-MICRO
• 1 X 73’ Wire
• 1 X 25’ Wire
• 1 X CHA MIL 2.0 (113" Long)
• 1 X CHA MIL EXT 2.0 (105.5" Long)
• 1 X CHA SPIKE
• 1 X CHA 50’ Coax with RFI Choke
• 1 X CHA MILITARY BACKPACK **BAG MAY VARY IN SHAPE AND COLOR**
• 2 X 3/8-24 SS Nuts
• Stainless Steel Hardware

NOTE: IT'S IMPORTANT TO WATERPROOF THE CHA MIL EXT 2.0 BEFORE PERMANENT INSTALLATION

Approx. Package Dimensions: 5.7kg. 62cm (L) x 23cm (W) x 40cm (H)
