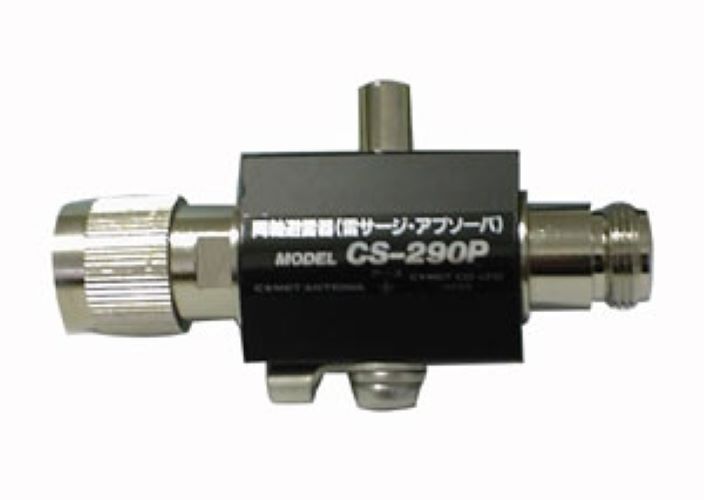

Comet surge protector is to protect your transceivers and/or receivers from excessive high ampere currency occurred by thunder surge, provided by the sufficient grounding to the earth.

Features:

• Special surge arrester element is involved, which allows automatic grounding to the earth, at excess large voltage currency.
• Small sized, but large capacity for high ampere.
• Long durability of thousands time repetition use.
• Extremely high sensitivity against high excess currency.
• Coaxial-core type arrester realized low insertion loss and wide frequency coverage.

Technical Specifications:

• Frequency range: DC-1500 MHz
• Insertion loss: 0.1 dB or less
• Impedance: 50 Ohm
• VSWR: 1.1 or less
• Max. power: 300 Watts PEP
• Min. radiation voltage: DC290V (+/-15%)
• Min. shock wave voltage: 1000V
• Min. shock wave amp.: 6000A
• Min. shock wave repetition 500 times: DC290V (+/-20%)
• Isolation register DC 100V: more than 10.000 Ohm
• Dimensions: 86x41x20 mm
• Weight: 130 gram

Please note that a lightning surge protector can help protect your equipment but can fail in extreme situations.
