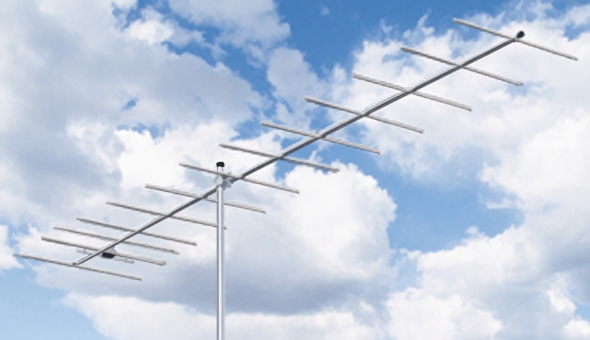

Discontinued Cushcraft A13B2 - 2-Meter, Yagi, 13 ele, 18.5 dBi, 1.5 KW
calcActive())">
A13B2 3 Element Wideband Boomer
- SKU
- 54-802
£379.99
Description / Discontinued Cushcraft A13B2 - 2-Meter, Yagi, 13 ele, 18.5 dBi, 1.5 KW
The A13B2 is as versatile as the A17B2 is specialized. A13B2 will be your choice for high performance across the entire 2 meter band. New and experienced hams will enjoy 15.8 dBi gain on FM, packet, CW, or sideband across the 4 MHz operating range.
Key Specifications:
- Frequency Range: 144 - 148 MHz
- Elements per band: 13
- Gain, dBi: 15.8
- Front to back Ratio, db: 26
- Side Lobe Atten, db: >60
- SWR 1.2:1 Bandwidth MHz: 4
- Max Power Watts PEP: 1500
- Weight: 3.03 kg
The A13B2 is easily mounted vertically or horizontally for maximum performance on your favorite mode. Its optimum boom length makes it a popular antenna that fits just about anywhere. The new UltraMatch balanced feed on the A13B2 provides a 50 Ohm match via a standard SO-239 UHF female connector.
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109241214 |
| Manufacturer | Cushcraft |
| Frequency Band | Amateur Bands |
| Frequency MHz | 144 MHz (2m) |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
Product Attachments
Customer Reviews
Price
3
Quality
3
Value
3
Poor protection from moisture in the matching box
Review by
ICOM1
I have owned several of the 13B2 yagis as have several friends & All of the antennas had issues with water in the black box or matching unit. WE all live in Florida & we get plenty of rain around here. It would take several days for the water to get out of the antenna after a rain so it was unusable until then. It worked Great when it was dry weather but moisture was it's enemy. The quality in materials also greatly got worse when MFJ took over the company. An M2 is a far better choice & they have Zero issues with water even when it's raining.
