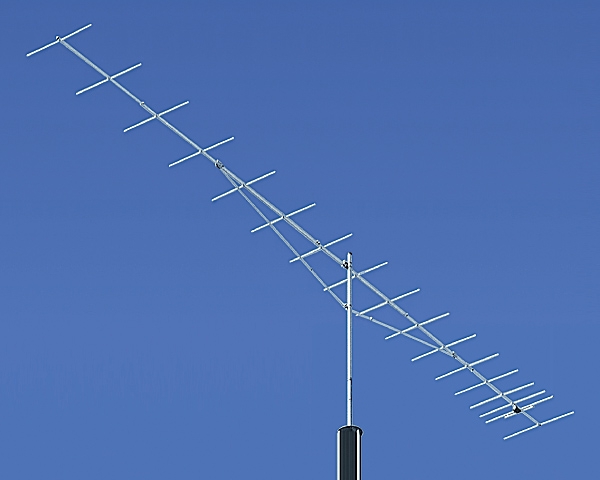

Discontinued Cushcraft A17B2 - 2-meter , Yagi, 17 ele, 18 dBi, 1.5 KW
- SKU
- 54-806
Description / Discontinued Cushcraft A17B2 - 2-meter , Yagi, 17 ele, 18 dBi, 1.5 KW
The serious two meter operator who is interested in EME, aurora, scatter, SSB, CW, tropo etc, will choose the A17B2. It has 17 elements on a 4.5 wavelength boom.
Our computer-aided design supported by precise test range data and the latest anufacturing technology gives you a cleaner pattern and 18 dBi gain in this long boom design. Significant enhancement is provided by the new UltraMatch balanced feed system with N-connector.
Key Specifications:
- Frequency Range: 144 - 148 MHz
- Elements per band: 17
- Gain, dBi: 18.0
- Front to back Ratio, db: 26
- Side Lobe Atten, db: >60
- SWR 1.2:1 Bandwidth MHz: >2
- Max Power Watts PEP: 1500
- Weight: 7.14 kg
The UltraMatch is a modified T-match system that provides a balanced current distribution on your Boomer. It uses UltraLink Teflon® dielectric cable allowing for low loss high power applications. UltraMatch is completely enclosed for weather proofing.
UltraMatch features an N-connector on the A17B2 and UHF SO239 on the A13B2. When all-weather performance is important, you will choose the new UltraMatched Boomers everytime.
