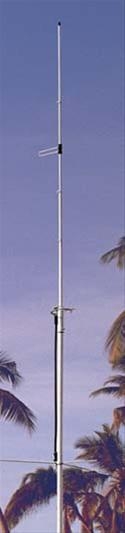

Ringo Ranger II

The Ringo Ranger II has more gain, less windload, and more mechanical integrity than other two meter antennas. You’ll quickly appreciate the benefits of this amazing antenna!

Based on the original W1BX Ringo, the Ringo Ranger II is the latest design featuring three ⅝ wave radiating elements and an adjustable ⅛ wave phasing stub. The result is a very low angle of radiation over your coverage area.

The Ringo Ranger II has built-in lightning protection, UV-stabilized insulators, heavy wall tubing, improved decoupling radials to eliminate feedline radiation, and all-weather performance.

	ARX-2	ARX-2B	ARX-220B	ARX-450B
Frequency	135-160 MHz	135-160 MHz	222-225 MHz	435-450 MHz
SWR 1.2:1 Typical 2:1 Bandwidth	>6 MHz	>3 MHz	>5 MHz	>5 MHz
Gain	5.5 dBi	7.0 dBi	7.0 dBi	7.0 dBi
Power Rating	1000 Watts	1000 Watts	500 Watts	500 Watts
Radiation Angle	16º	7º	7º	7º
Horizontal Radiation Pattern	360º	360º	360º	360º
Radiator Base Diameter	5 in. 12.7 cm	.75 in. 1.9 cm	.75 in. 1.9 cm	.50 in. 1.2 cm
Height	12.5 ft 3.8 m	14 ft 4.3 m	9.3 ft 2.8 m	4.9 ft 1.5m
Mast Size Range	1.0-1.25 in 2.54-3.1 cm	1.0-1.25 in 2.54-3.1 cm	1.0-1.25 in 2.54-3.1 cm	.75-.88 in. 1.9-2.22 cm
Wind Load	.33 ft² .03m²	.5 ft² .05m²	.33 ft² .03m²	.2 ft² .02m²
Radial Length	20.5 in 52.1 cm	20.5 in 52.1 cm	13.25 in 33.7 cm	6.75 in 17.1 cm
Weight	4 lb 1.8 kg	6 lb 2.7 kg	5 lb 2.3 kg	1 lb .45 kb

Allow Backorder in Clerk.io	No
Product Condition	New
Bar Code/EAN	5056109241528
Manufacturer	Cushcraft
Frequency Band	Amateur Bands
Frequency MHz	VHF (30 to 300 MHz)
Antenna Connection	SO239
Item returned for technician testing period	14 days
Repair period	90 days
Refund period	14 days
Exchange period	14 days

429 Too Many Requests

Description / Cushcraft ARX-220B - 220Mhz,Vert.,Ringo Ranger II,7dBi,500w,9.3ft
