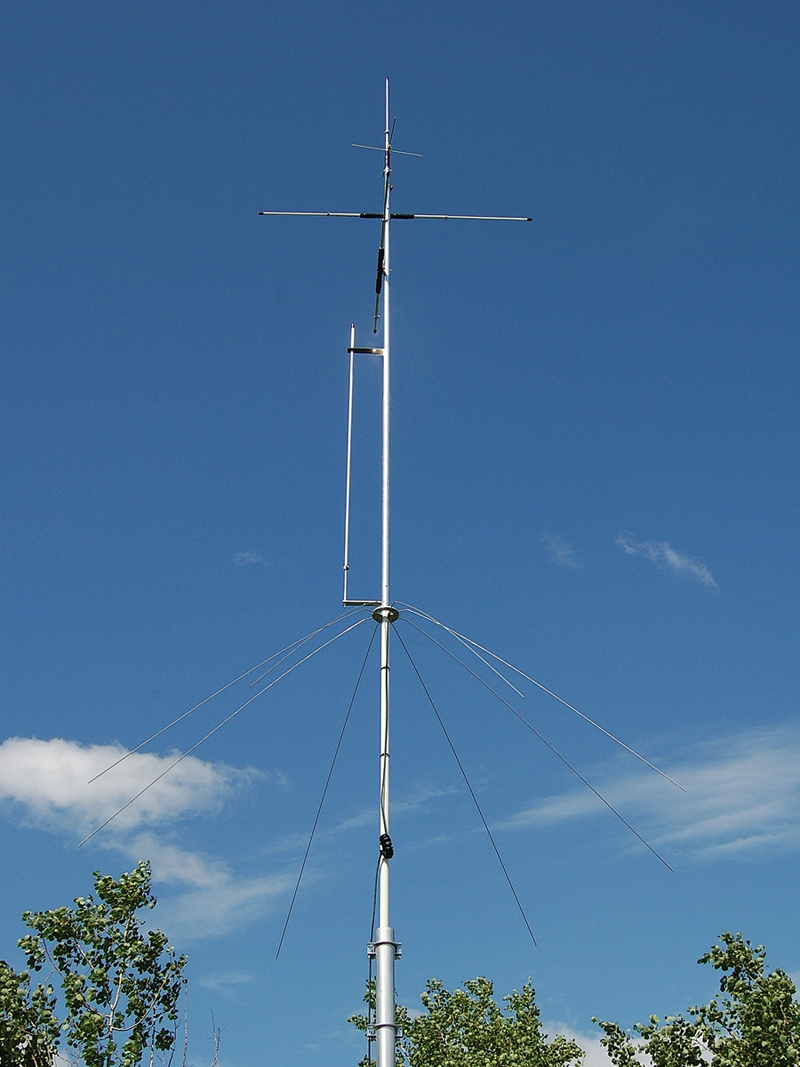

The MA6V provides 6-band coverage on 20m through to 6m. Power rating is an excellent 250W (PEP). VSWR at resonance is 1.2 with usable bandwidths of 200, 100, 450, 100 and 500kHz.

The antenna does not require radials and is the perfect choice for patios, backyards and small gardens. It can be quickly dismantled and stored if necessary.

Made for todays expanded-coverage radios, Cushcrafts MA6V provides the same great versatility and performance of the MA5V- with the addition of 6 Meters. Enjoy congestion-free FM-repeater operation and explore the world of exotic seasonal band openings on 50 MHz CW and SSB.

It is a great way to add amateur radios magic band to your operating repertoire!

Features/Specification

• Bands: 6, 10, 12, 15, 17, 20m
• Gain: 1-2dBi
• Power rating:250W PEP
• VSWR: 1.2:1 (All bands)
• Bandwidth (2:1) kHz 10m (500), 12m (100), 15m (450), 17m (100), 20m (200)
• Vert. Rad. Angle: 16 degs
• Height: 4.48m
• Mast size range: 31.8-51mm
• Wind survival: 160 kph
• Weight: 2.95kg
• Neighbor-friendly low profile
• Rugged light-weight construction
• Air-baggage transportable (longest tube is 54)
• Robust mounting hardware included
• New bandwidth enhancing 8-rod counterpoise
• New low loss balun
