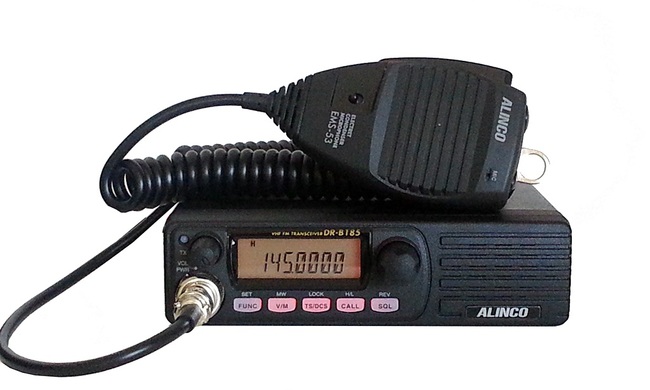

With an incredible power range from 5/85w, this new VHF mobile transceiver is one of the most powerful 2m models we have seen.

Very neat and simple front panel layout too, with a large clear well lit display.

Key Features/Specifications:

• Frequency coverage : 136.000-174.000 MHz
• Transmit frequency range: 144.000-148.000 MHz
• FM minimum power: 5w
• FM maximum power: 85w
• Transceiver maximum current : 20A
• Mode : FM
• Power requirements : 12-15VDC
• 85/5 watts, H/L power settings
• Frequency range: TX/RX: 144-147.995 MHz (FM), RX: 136-173.995 MHz
• Operating modes: 16K0F3E (FM), 11K50F3E (Narrow-FM)
• Channel steps: 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
• Memory channels: 500 channels
• Antenna impedance: 50 ohms unbalanced (SO-239)
• Frequency stability: Plus/minus 2.5ppm TCXO
• Cloning capability
• CTCSS, DCS encode/decode, DTMF encode
• Clean, clear Alinco audio
• Super-wide alphanumeric display
• Wide and narrow FM modes
• Time Out Timer
• Power supply: 13.8V DC nominal, plus/minus 15 percent
• Polarity: Negative ground
• Current drain: Approximately 20.0A TX High, 6A TX Lo, 0.5A squelched
• Usable temperature range: 14 degrees F to 140 F
• Dimensions (w/o projection): 6.44 in. (W) x 1.73 in. (H) x 7.21 in. (D)
• Weight: 3.31 lbs.
• CTCSS tones: encode/decode 39 tones
• Digital Coded Squelch: encode/decode 104 codes

Supplied accessories:

• EMS-53 hand microphone
• Mounting bracket w/screw kit
• DC power cable
• Instruction manual

Approx. Package Dimensions: 2.5kg. 52cm (L) X 35cm (W) X 9cm (H)
