2mCROSS14WA

• 2m- 2m band

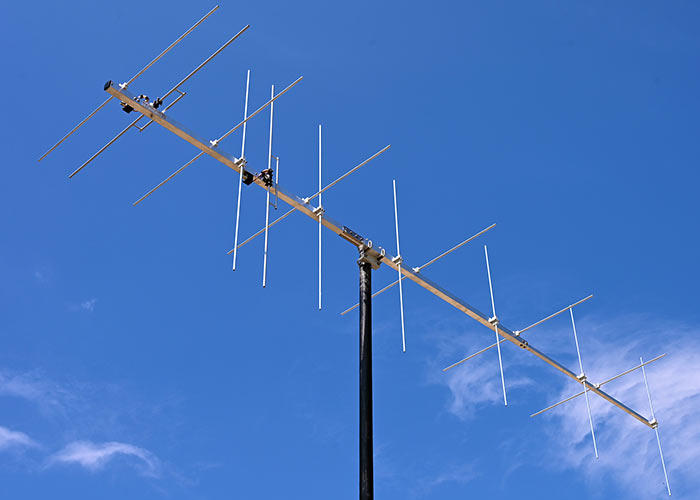

• CROSS – CROSS Yagi antenna has horizontal and vertical elements – separated on a single boom, the antenna is mounted in a “+” format
• 14 – 14 elements, 7 elements of horizontal polarization, and 7 elements of vertical polarization
• W – Wideband. The antenna covers the full frequency range of 144-146 MHz
• A – Boom or element parts length up to 118cm or 47″ for ANY transport

Electrical Specifications

• Frequency Range: 144 – 146 MHz
• Free Space Forward Gain: 12.7 dBi
• Front-to-Back Ratio: 32 dB
• -3 dB Horizontal Beamwidth: 43.4°
• -3 dB Vertical Beamwidth: 50.4°
• Polarization: Horizontal and Vertical (RHCP, LHCP with phase shift)
• Distance Between Dipoles: 520mm
• Degrees: 90°
• Isolation Between Antennas: More than 30dB
• Nominal Input Impedance: 50 Ohms
• SWR Across Entire Band: <1.2
• Maximum Power Input: 2 x 1500W
• Matching Method: Direct feed through common mode choke (current balun)
• Connectors: 2 x “N”

Mechanical Specifications

• Number of Elements: 14 (7 + 7)
• Element Diameter: 8mm Aluminum tube
• Dipole Diameter: 8 mm Hard Copper tube plastic coated
• Longest Element: 1040 mm
• Element Mounting Position: CROSS antenna – 2 Sides
• Balun and Connector: Included
• Boom Length: 3.5 m
• Boom Size: Tapered Boom 30×30, 20×20 mm
• Turning Radius: 2 m
• Number of Boom Pieces: 3
• Guy rope support: No, strong boom
• Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
• Clamp: “RA” Bracket
• Survival Wind Speed: 150 km/h
• Net Weight: 4.3kg
• Gross Weight: 6 kg
• Transportation Length: 119 cm
