DISCONTINUED Elecraft KX3-2M-AT 2m all-mode internal transverter for KX3 with KXAT3 installed
- SKU
- 97-295
Description / DISCONTINUED Elecraft KX3-2M-AT 2m all-mode internal transverter for KX3 with KXAT3 installed

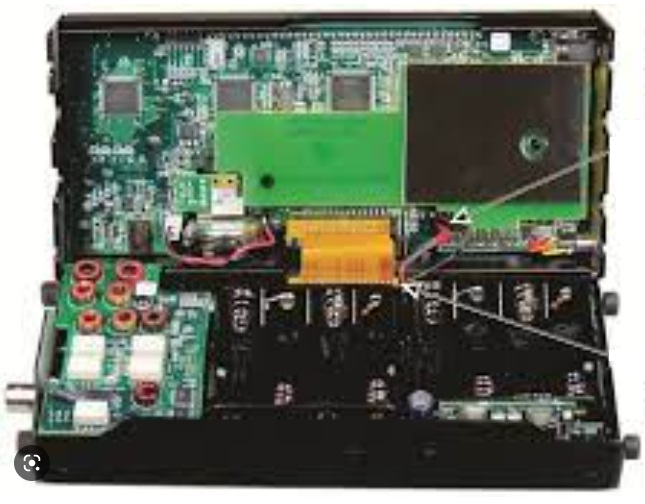

The KX3 2 Meter option adds a new band to the KX3 band stack for operation at 144 Mhz. Consisting of a board and a separate SMA antenna connection, it can be installed in any KX3.
The KX3's all-mode operation is available when it is installed. This includes all functions needed to operate the KX3 on FM repeaters, Digital Modes, CW and phone modes.
Receive Frequency Range: KX3-2M: 120 MHz – 150 MHz, typical, with reduced sensitivity outside of 144-148 MHz
Power Consumption: 120 mA receive, squelch open, typical , in addition to the normal KX3 current demand whenever the 2 meter is selected
Sleep Mode can reduce the overall radio current to about 150 - 180 mA in FM Mode (squelched)
Max: 1.7 A at 3W output , total radio current , typical for the KX3 when transmitting
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 05055468315314 |
| Manufacturer | Elecraft |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
