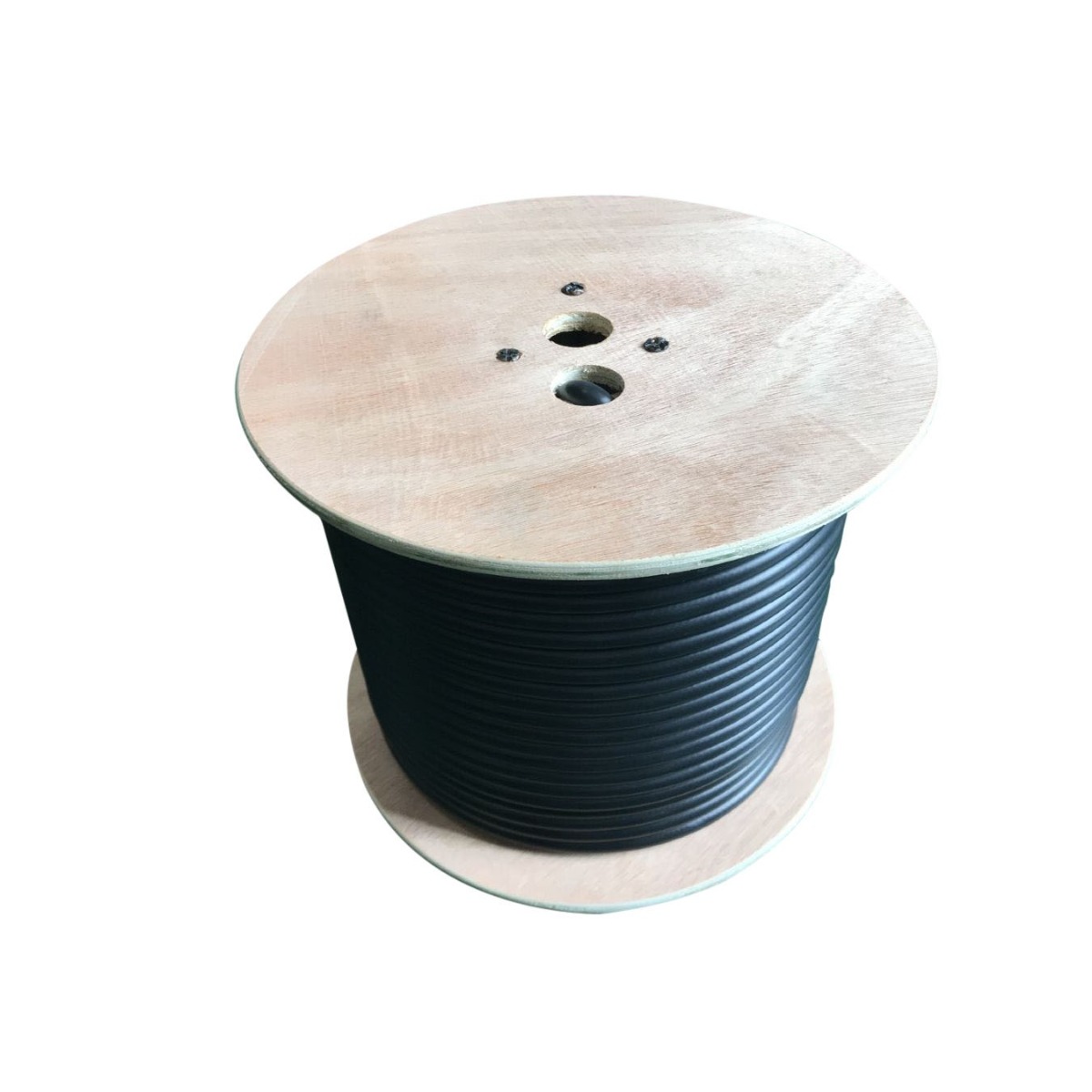

FZ400CU Ultra-Flex Super Low Loss Coax Cable (100 metre drum).

The FZ400CU coax cable is similar to LMR400 is a professional ultra-flex, super low loss, coax cable suitable for video RF signal and broadcast transmissions. This cable has been specifically formulated and designed to get as “super-low” loss as possible – see the outstanding loss performance statistics below.

Technical Specifications:

• Diameter (mm) 10.29±0.20
• Min. Thickness: 1.0mm
• Copper Inner Conductor Diameter: 2.74±0.01mm
• Dielectric Foam PE Diameter: 7.24±0.15
• Impedance at 200MHz: 50±2 Ohms
• Capacitance: 54±3 Pf/m
• Dielectric Withstand: >500V
• Insulation Resistance at 20°: >5000 MOHMS. km
• Inner Conductor Resistance: <3.0 Ohms/km
• Outer Conductor Resistance: <9.8 Ohms/km
• Velocity: 85%
• Return Loss: 30-1000MHz: >20dB | 1000-3000MHz: >18dB
• Temperature Range: -10° - +80°C
• Min. Bending Radius: Fixed Laying: 30mm | Mobile Laying: 60mm

Insertion Losses:

• Loss: 10MHz 1.61dB/100m
• Loss: 100MHz 4.50dB/100m
• Loss: 400MHz 8.40dB/100m
• Loss: 1000MHz 14.40dB/100m
• Loss: 2000MHz 19.68dB/100m
• Loss: 3000MHz 26.50dB/100m
