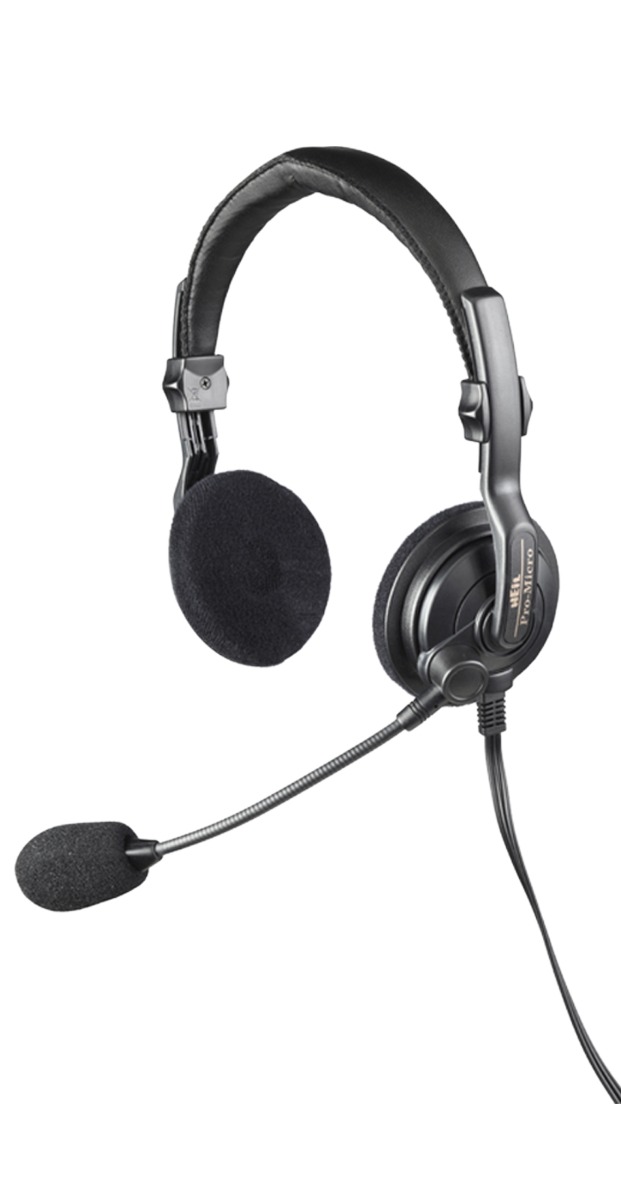

PMD-6 Micro Dual-sided Headset

The Pro Micro is a lightweight dual-side headset designed for Amateur Radio use. The Pro Micro is available with a Dynamic element.

The speakers used in the Pro Micro are very sensitive and don’t require much AF gain from the transceiver. The frequency response is 20 Hz – 17 kHz with very low distortion. The ear pads are replaceable acoustic foam..

The microphone audio for the Pro Micro series terminates into a 1/8” male plug while the headphone terminates into a 1/8” stereo with an adaptor.

To adjust the headset, simply bend the stainless steel support that is inside the black padded headband.

All Heil Pro Micro headsets are shipped with a foam windscreen that fits over the microphone. The windscreen does not change the frequency response, and reduces the breath blasts directly into the microphone.

Note: To use dynamic mic elements on vintage radios (requiring a high impedance input of 10k to 30k ohms) will require the use of an XT-1 impedance matching transformer.

Features

Generating Element: Dynamic
Frequency Response: 100Hz – 12kHz
Polar Pattern: Cardioid
Impedance: 600 ohms
Output Level: -57dB at 1kHz
Weight: 5.2oz
required adapter: AD-1 series

Customer Reviews

Price

Quality

Value

Great for /P contesting

Review by G6GEI

Having seen couple of colleagues using these I had to try. Used last night in UKAC with my Yaesu FT-DX10 and a footswitch, brilliant ! Good reports back from my signal and received audio as good as you could hope for. I also have a larger Heil headset but I found it too bulky, better for home use.

Allow Backorder in Clerk.io	No
Product Condition	New
Bar Code/EAN	5056109262097
Manufacturer	HEIL
Item returned for technician testing period	14 days
Repair period	90 days
Refund period	14 days
Exchange period	14 days

Description / DISCONTINUED Heil Sound PMD 6 - AR Pro-Micro Dual-Sided Headset w/HC-6 dynamic element
