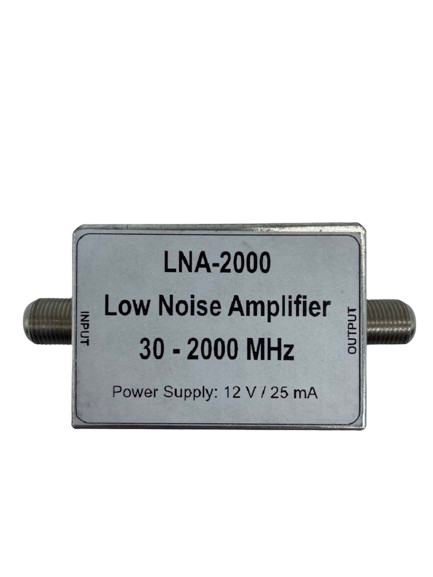

Watson LNA-2000 In-line low noise amplifier
Description / Watson LNA-2000 In-line low noise amplifier
Low noise wide band preamplifier with built in rejection filter for the GSM band, (No power cable is needed, the preamp is powered through the coaxial cable via power injector at the RX end of the coax cable.)
specification
- Frequency range: 35-2000 MHz min.
- Rejection of the GSM band (935 - 955 MHz): 25 dB typ.
- Gain at 500 MHz: 23 dB typ.
- Gain at 2000 MHz: 17 dB typ.
- Noise figure at 500 MHz: 2,0 dB typ.
- Noise figure at 2000 MHz: 2,5 dB typ.
- Input/output connector: F Female
- Input and output impedance: 50 to 75 Ohm
- Power 12 V DC via coaxial cable (voltage range 11 to 14 V)
- (DD-AMTEK PWR-I is necessary at the RX end)
- Current consumption: max. 25 mA
- Size: 72 x 34 x 23 mm
- weight: 39 g
