These special and very limited variants will celebrate the incredible ICOM journey since 1964 and feature a 60th anniversary plaque. Also, ICOM have partnered up with SEIKO to produce a limited edition 60th anniversary watch to go alongside the IC-7760SE. This attractive stainless-steel diver’s watch, water resistant to a depth of 200m, featuring a black face with the ICOM 60th insignia, the Icom logo, a day/date dial and complimented with a black wrist strap. The rear of the watch also bears the ‘60th Anniversary’ quote and serial number of the watch itself. It will come housed in a unique ICOM and SEIKO decoration box.

UK customers lucky enough to buy one of these very few IC-7760SE models will be able to claim their watch directly from Icom UK after they have received their IC-7760SE transceiver. ICOM will require the serial number, name of the dealer where purchased and a copy of the invoice to be able to process this

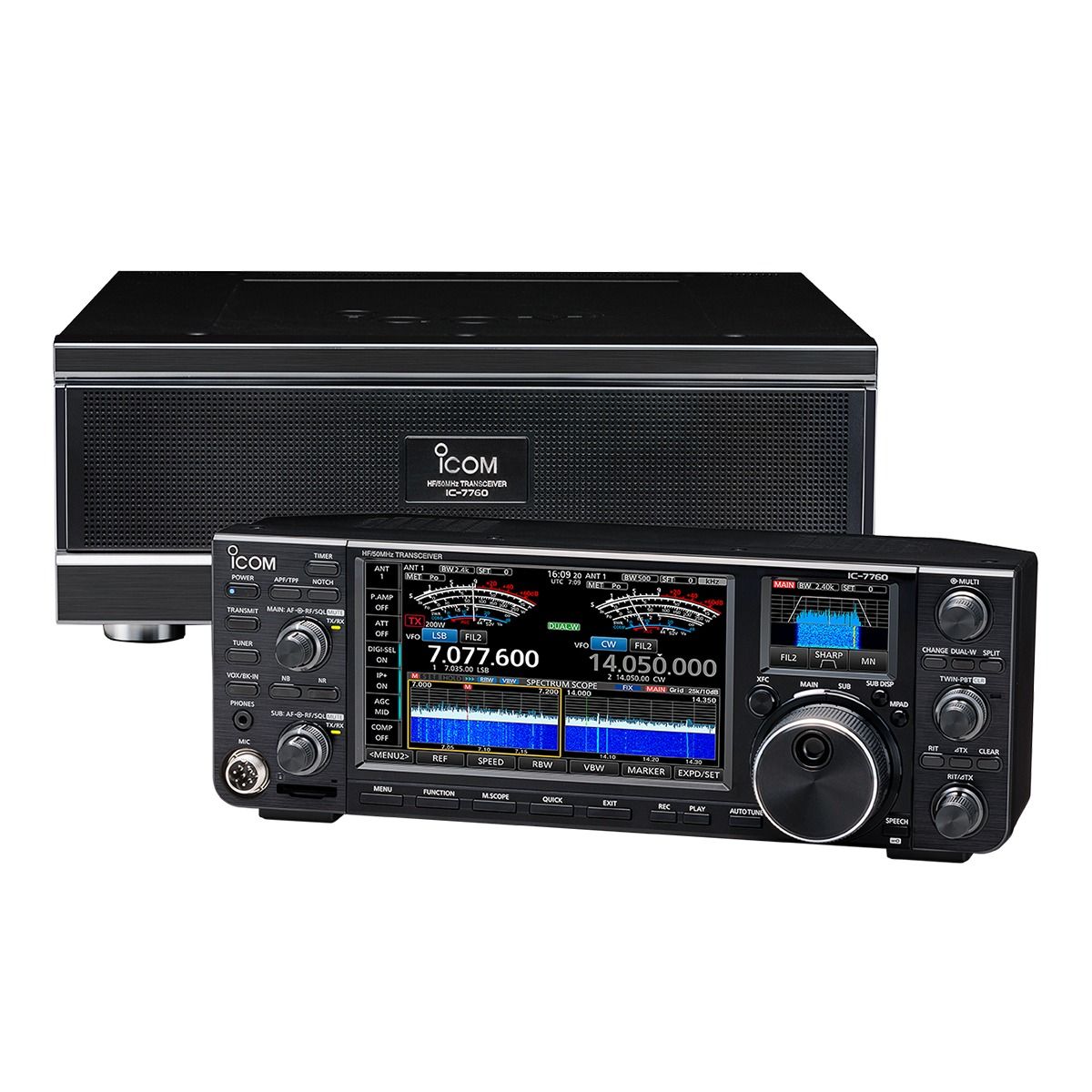

The IC-7760 is a 200 W HF/50 MHz Amateur radio transceiver. It offers a new “innovative shack style” consisting of a full control head with separate RF deck, connected through a control cable for greater installation flexibility.

The supplied control cable is 3 m (9.8 ft) long and by using a commercially available LAN cable, the RF deck can be installed in a more remote location. Furthermore, the control head and RF deck can be connected through a wired home LAN connection for remote operation.

This simple configuration does not require a PC, and can be easily operated from nearly anywhere in the home as long as a LAN connection is available.

Main and Sub dual displays with touch screen function are provided for improved viewing of information and also smooth operation. The 7-inch main display centralises information important for operation, such as the setting/operating status of each function. The newly adopted 2.4-inch sub-display shows filter effects, various meters, and band stacking register keys.

DIGI-SEL (Digital Pre-selector) and the preamp can now be used together. DIGI-SEL prevents suppression of strong out-of-band signals, while the preamp improves receiver sensitivity. It also maximizes the dynamic range of the A/D converter to avoid signal overflow.

The IC-7760 offers a new Innovative Shack Style, combining 200 W of high output power with clean signal transmission assisted by the Digital Pre-Distortion feature, and convenient functions to support comfortable operation, making it ideal for contests and DX hunting.

Features

• Full control head with separate RF deck for greater installation flexibility.*1
• Supports in-house remote operation through a wired LAN. *1
• Two displays, 7-inch wide and 2.4-inch, with touch screen operation.
• DIGI-SEL and the preamp can work at the same time.
• Advanced RF direct sampling system using FPGA processing.
• 200 W full power and full duty. *2
• DPD (Digital Pre-Distortion) for excellent IMD characteristics and clean transmitted signals.

*1 Communication between the controller and the RF deck depends on the network environment in which it is used. Gigabit Ethernet is recommended. The controller can be used on a different network segment than the RF deck such as over a network switch.

*2 200 W output and 1-hour continuous transmission with 100~200V AC input (at ambient temperature 25 ℃.)
