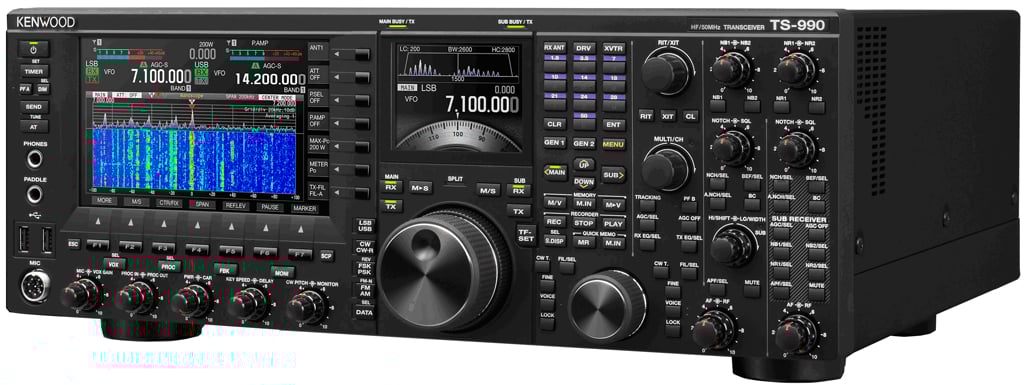

The TS-990S comes equipped with dual receivers for simultaneous dual reception on different bands. It also features narrow-band roofing filters in the main receiver in a full down-conversion configuration. The new TS-990S achieves the highest base-level reception performance of any radio in the TS series, through the careful selection of circuits and components for their high-performance and through an inovative triple DSP configuration. The Trio tone has evolved into the Kenwood tone. Also, thanks to the dual TFT display and superior panel layout, it achieves both comfortable visibility and operability. Our top-of-the-line transceiver is for all radio operators who love HF.

Key Features/Specifications:

• HF/50MHz Flagship Base Station
• 200 watts output from 50V FET Push-pull PA stage
• +40dBm Intercept Point RX
• Main RX - Down Conversion on all bands
• 270Hz/500Hz/2.7kHz/6kHz/15kHz Roofing Filters
• Sub RX - Down Conversion on 15/20/40/80/160M bands (as TS-590S RX)
• 500Hz/2.7kHz Roofing Filters
• 2 x TFT Colour Display screens
• 3 x DSP Processors
• Built-in RTTY/FSK/PSK31 Decoder/Encoder QPSK update to follow
• 4 x SO239 Antenna sockets plus RCA jacks for RX-only antenna input and external RX out. "Antenna Name" display function for the 4 SO239 ports

Connectivity:

• 10MHz Ref Oscillator I/O (BNC)
• External ATU port
• Keyboard In COM Port (Female 9-pin)
• Straight Key Paddle/external Keyer
• 2 x USB-A & 1 x USB-B ports
• "ACC-2" Data/audio connector
• "Remote" linear connector
• Analogue Meter Jack 3.5 mm
• "DRV" low-level LF drive
• Optical SPDIF I/O
• 2 x external speaker sockets
• DVI-I Dual-link video port
• LAN port
