Discontinued MFJ-1786X - 10-30 Mhz Hi-Q Loop/Deluxe-220V
- SKU
- 53-694
Description / Discontinued MFJ-1786X - 10-30 Mhz Hi-Q Loop/Deluxe-220V

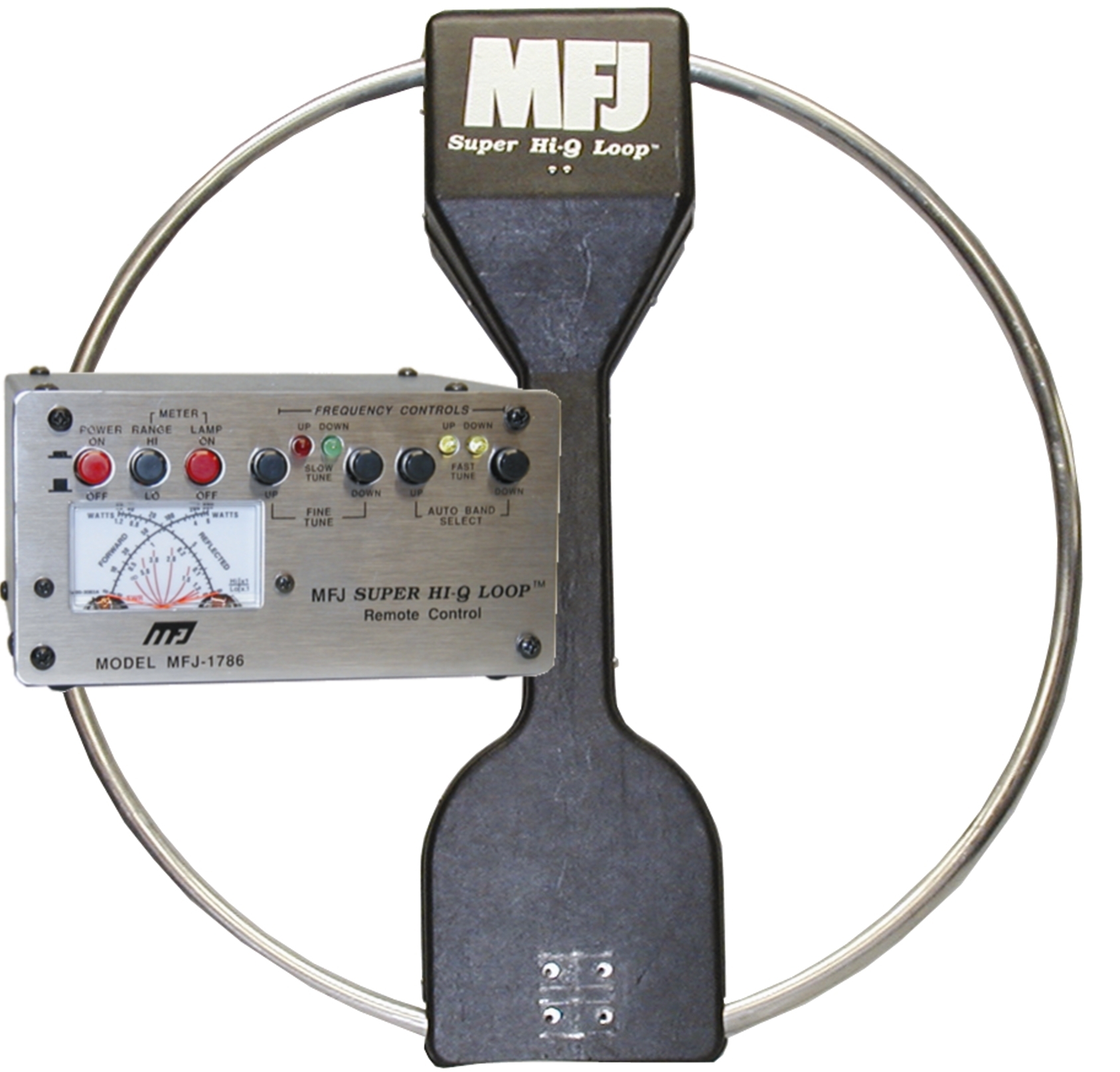

The MFJ-1786 Super Hi-Q Loop Antenna is ideal for restricted space locations. Rugged all welded aluminium construction, it is fully weatherproof and does not require a separate control cable, the coax carries the signal and the DC control signals for tuning. You can remotely tune to the amateur bands in seconds. It has very narrow bandwidth which reduces harmonic interference and provides super front-end receiver selectivity. Vertical mounting gives you good low angle radiation for DX and some high angle radiation for local work. It does not need ground, radials, counterpoise or antenna tuner. The MFJ-1786 covers 10 to 30MHz, has a Remote Control with built-in two range cross-needle VSWR/Wattmeter with auto band select mode.
Key Features/Specifications:
- 10-30MHz
- Size: <1m (36in) loop
- Feeder: 50 Ohms
- Power: 150W
- Remote control & PSU included
- Auto band selection
- Dual Fast/Slow tune buttons
- Built-in cross-needle VSWR/Wattmeter
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109233509 |
| Manufacturer | MFJ |
| Frequency Band | Amateur HF |
| Frequency MHz | Multiple HF Bands |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
