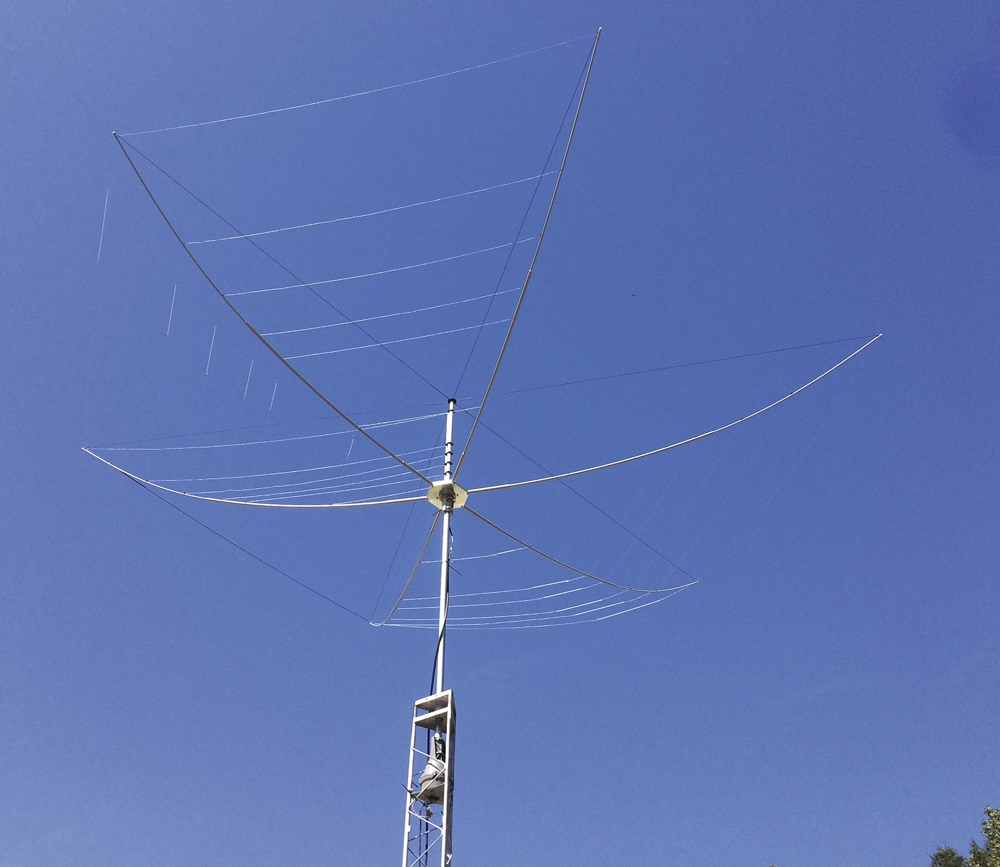

New Hex Beam from MFJ delivers solid gain and directivity on 20,17,15,12,10, and 6 Meters in a low-profile package.

The MFJ-1846 Hex Beam tops the list, solid construction, and DX-snagging design. It uses an updated G3TXQ element configuration for improved bandwidth, superior front-to-back performance, and low SWR. Exceptionally durable spreaders, and sliding antenna-wire guides

Gain and directivity make all the difference when hunting DX or maintaining schedules, and the Hex Beam has a long history of delivering satisfying results where antenna options are limited.

Featues

• Light weight - mounts on a tripod, gable mount, or even chimney straps.
• Proven directivity and gain from a time-tested design.
• No touchy setup, 100% plug-n-play.
• Rotates with an inexpensive rotor- only 3.5 square-feet of wind loading.
• Handles maximum legal power, all modes, all six bands.
• Delivers full-band coverage without a tuner.
• Great for contesting, QSY instantly between all six bands.
• Just one coax feed
• Sky-gray spreaders disappear against most backdrops.
• Small footprint - 11ft turning radius fits cramped spaces.
• Symmetrical footprint-stays balanced when coated with ice and snow.

• Gain 5.3 dBi in free space (more over ground)
• Front-to-Back Ratio 15 - 20 dB typical
• Turning Radius 11 feet
• Maximum Mast Size: 2-1/16" OD
• Weight: 25 lbs
• Wind Loading Surface: 3.5 sq.ft.
